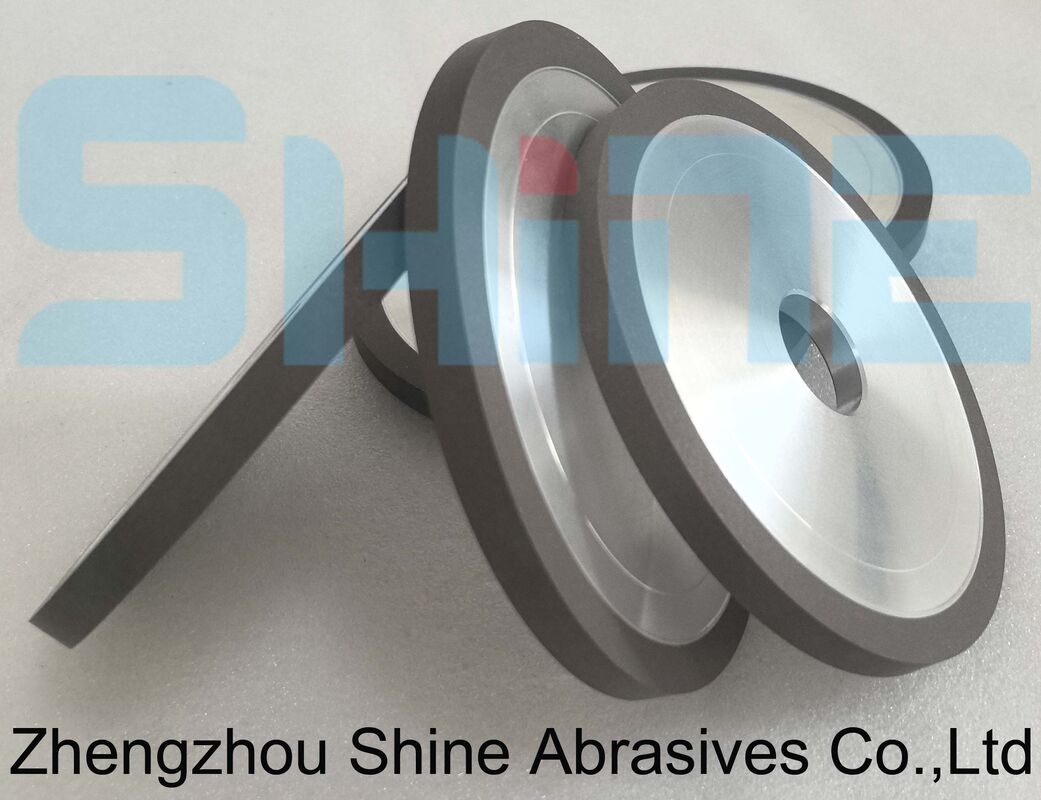

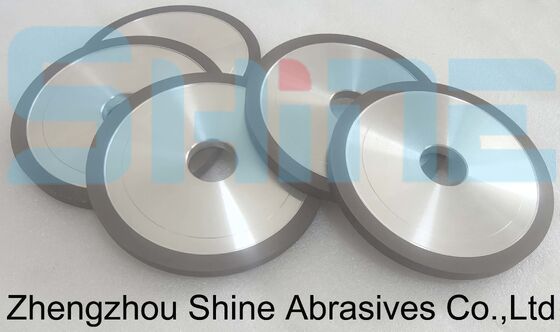

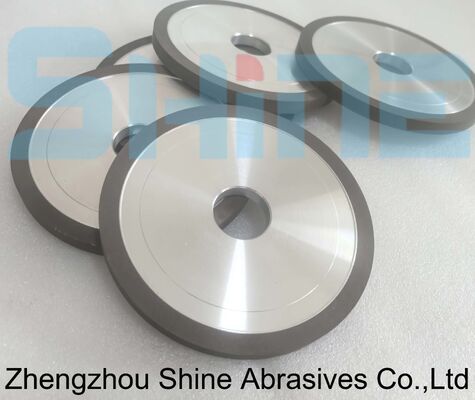

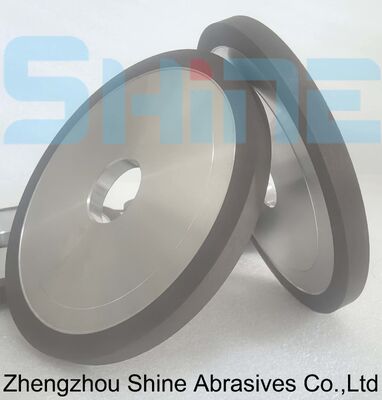

1A1 Vitrified Bond Diamond Grinding Wheel 100x40x32x10 for Carbide Die Internal Grinding

Product Details:

Place of Origin:	Henan, China
Brand Name:	JC / OEM
Certification:	ISO 9001:2015
Model Number:	1A1-100x40x32x10

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	USD 20-60 / Piece
Packaging Details:	Export-grade carton with shock-proof foam insert, each wheel individually wrapped
Delivery Time:	5-10 working days for stock, 20-30 days for production
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	5000 Pieces per Month

Contact Now

Detailed Product Description

Model:	1A1	Dimensions:	100 X 40 X 32 X 10 Mm
Diamond Grit:	W40 (W5-W80/100 Optional)	Bond Type:	Vitrified (Ceramic) Bond
Linear Speed:	16-50 M/s	Infeed:	0.05 Mm Per Pass
Feed Speed:	80-130 Mm/min	Applied Workpiece:	Carbide Dies / Hard Alloy
Highlight:	vitrified bond diamond grinding wheel , 100x40x32x10 diamond wheel , carbide die internal grinding wheel

1A1 Vitrified Bond Diamond Grinding Wheel for Carbide Die Internal Grinding

This 1A1 vitrified bond diamond grinding wheel (100x40x32x10, W40 grit) is designed for precision internal (bore) grinding of cemented carbide dies and hard alloy sleeves. The rigid ceramic bond maintains bore size and roundness over long production runs.

Key Features

High-precision bore grinding with tight dimensional control
Rigid vitrified bond keeps form and roundness stable
Low grinding force and low temperature protect the bore surface
Long wheel life lowers cost per part in hard-alloy grinding

Applications

Suitable for internal grinding of carbide dies, drawing dies, hard alloy sleeves and industrial ceramic rings on internal grinders.

Specifications

Model	1A1
Dimensions	100 x 40 x 32 x 10 mm
Diamond Grit	W40 (W5-W80/100 optional)
Bond	Vitrified (Ceramic) Bond
Linear Speed	16-50 m/s
Infeed	0.05 mm per pass
Feed Speed	80-130 mm/min
