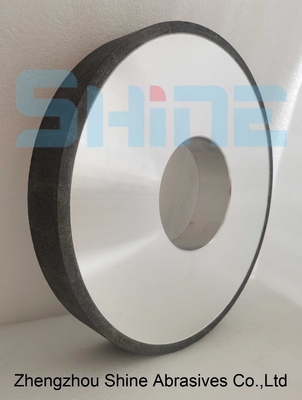

D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding

D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding

  • D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding
  • D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding
  • D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding
  • D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding
D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding
Product Details:
Place of Origin: CHINA
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 1A1
Payment & Shipping Terms:
Minimum Order Quantity: 2 PCS
Price: Negotiate
Packaging Details: 1 pcs in one paper box
Delivery Time: 5 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 PCS per week
Contact Now
Detailed Product Description
Shape: 1A1 Flat Diameter: 12''
Bond Type: Vitrified Grit Size: D126
Diamond Rim Size: 50x10mm HS Code: 6804211000
High Light:

12'' Vitrified Cbn Grinding Wheel

,

D126 od grinding wheel

,

D126 Vitrified CBN Grinding Wheel

Vitrified Bond Wheels 12'' 1A1 CBN Wheel For Steel OD Grinding​



Shine Abrasives Vitrified Bond CBN grinding wheel,12'' diameter,1A1 shape

Vitrified Bond Wheels are usual used for steel materials OD grinding,cylindrical grinding.

Also used for Sharpening and precision of tools containing tungsten, tungsten, molybdenum and

other high-speed steels, especially vanadium alloy steel, cobalt alloy steel and other special high-speed steel tools.



The drawing of Shine Abrasives Vitrified Bond Wheels 12'' 1A1 CBN Wheel For Steel OD Grinding​

D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding 0





The main sizes form of Shine Abrasives Vitrified Bond Wheels 12'' 1A1 CBN Wheel For Steel OD Grinding​



Abrasive Material:CBN Bond Type:Vitrified
CBN Grit:B126 Wheel Diameter: 12''
Wheel Bore:127mmH7 Wheel Weight:8kgs/PC
Wheel Thickness:50mm CBN rim size:50x10mm
Other standard sizes also are available as requested.


Features of Shine Abrasives Shine Abrasives Vitrified Bond Wheels 12'' 1A1 CBN Wheel For Steel OD Grinding​

The thermal conductivity of CBN can reach dozens to hundreds of times that of the corundum grinding wheel,

so it can quickly export the grinding heat and reduce the thermal deformation of the workpiece.

Ideal for grinding materials with low thermal conductivity. Various spraying (welding) materials: nickel-based, iron-based, etc.;

wear-resistant cast iron materials:

vanadium-titanium cast iron, high phosphorus cast iron, chilled cast iron, etc.; titanium alloys: such as TC4, etc.



Application picture for reference.

D126 12'' Vitrified CBN Grinding Wheel For Steel OD Grinding 1



Attention:Workers should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels
