Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Product Details:

Place of Origin:	China
Brand Name:	Shine Abrasives
Certification:	ISO
Model Number:	4V2 1A1 14A2 9A3

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	FOB
Packaging Details:	one in paperbox
Delivery Time:	5 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 PCS in one week

Contact Now

Detailed Product Description

Wheel Type:	Straight	Thickness:	2-4mm
Max Pressure:	5MPa	Arbor Size:	7/8 Inch
Hs Code:	6804211000	Material:	Aluminum Oxide / Silicon Carbide / Diamond / CBN
Efficiency:	Fast	Type:	Single Row
Usage:	Grinding	Durability:	High
Wheeldiameter:	100mm - 400mm	Bondtype:	Vitrified / Resin / Metal
Boresize:	12.7mm - 32mm	Size:	4-12 Inch
Max Rpm:	6000rpm
Highlight:	hybrid-bond diamond wheel for carbide drill bits , CNC grinding wheel for flute grinding , diamond grinding wheel with hybrid bond

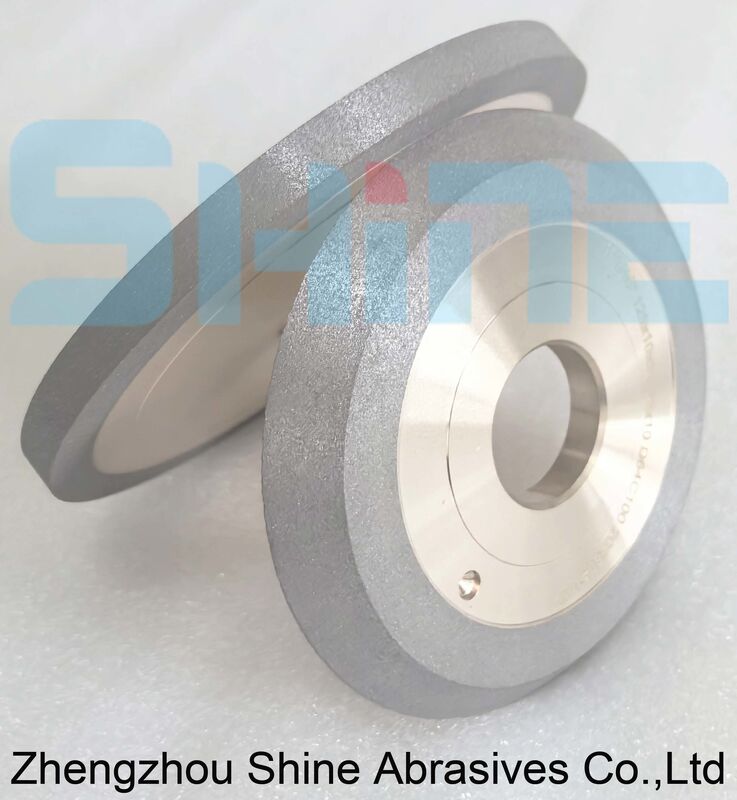

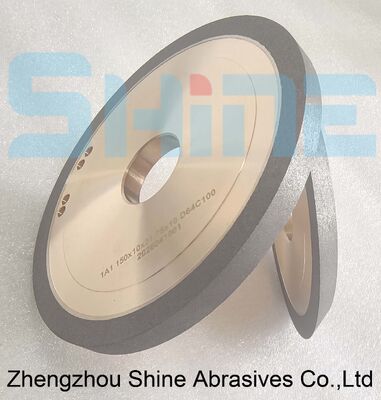

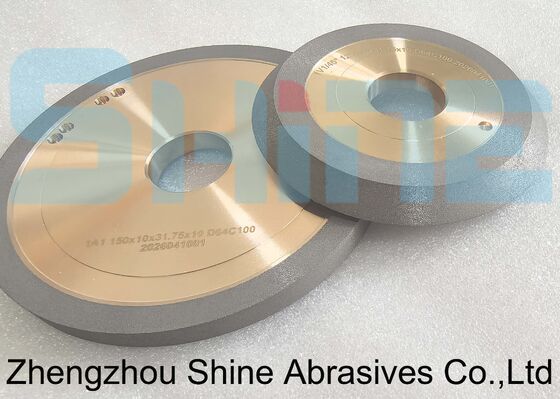

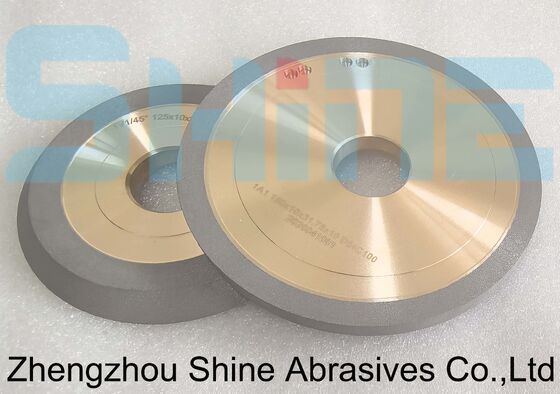

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC).hybrid bond diamond wheel uses a diamond layer held by a mix of binders/materials (commonly a resin + metal/plastic matrix, or a bond system engineered to combine properties). For carbide drill bit fluting/fultting (I assume you mean flute grinding/fulting), these wheels are usually specified for profile/helix grinding and flute regrind where you need consistent geometry and smooth chip-breaking performance.

Technical Parameters:

Parameter	Detail
Package	Carton Box
Shape	Cup, Straight, Cylindrical, Etc.
Warranty	1 Year
Material	Carbon Steel
Max Pressure	5MPa
Bond	Vitrified, Resin, Metal, Etc.
Application	CNC Grinding, Flute Grinding, Gash Grinding, Relief Angle Grinding
Max Temperature	150℃
Size	4-12 Inch
Max Speed	100 m/s

Wheel contacts the carbide along the flute relief/profile.
CNC controls infeed, feed rate, wheel speed, and dwell time to shape flutes consistently.
Coolant/air blast removes swarf and controls temperature.
The hybrid bond is designed so the wheel maintains shape while still releasing fresh diamond when needed (depending on how it’s formulated.
