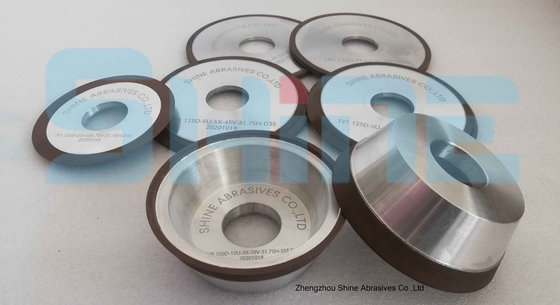

ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels

ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels

  • ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
  • ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
Product Details:
Place of Origin: CHINA
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 1A1-1V1-11V9
Payment & Shipping Terms:
Minimum Order Quantity: 2 PCS
Packaging Details: 1 pcs in one paper box
Delivery Time: 5 working days
Payment Terms: L/C, T/T
Supply Ability: 500 PCS per week
Contact Now
Detailed Product Description
Shape: 1A1 1V1 Diameter: 75mm 100mm 125mm
Bond Type: Hybrid Or Metal Grit Size: D64
Diamond Rim Size: 10x10mm HS Code: 6804211000
High Light:

ISO CNC Grinding Wheels

,

Resharpening Diamond Cbn Grinding Wheels

,

ISO Resharpening Diamond Cbn Grinding Wheels

CNC Grinding Wheels Diamond for carbide round tools manufacture or resharpening.



Shine Abrasives CNC Diamond and CBN wheels are application for carbide and steel round tools manufacture or

resharpening by CNC grinder. fluting, end fluting, gashing, and OD relief.



The drawing of Shine Abrasives CNC Grinding Wheels Diamond for carbide round tools manufacture or resharpening.

ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels 0

The typical and standard sizes form of Shine Abrasives

CNC Grinding Wheels Diamond for carbide round tools manufacture or resharpening.





Wheel

type



D

Diameter



T or U

Wheel

Thickness



H

Hole



X

Diamond

Or

CBN depth

T or U

Diamond

Or

CBN thickness



V°Angle





Diamond

Or

CBN

Grit size



1A1



75mm



10mm

12mm

15mm

20mm

customized





20mm

31.7mm

32mm



customized





5mm

10mm



10mm

12mm

15mm

20mm

customized





/







D64

D46

100mm
125mm



1V1

100mm

20°

30°

45°

125mm
150mm



11V9

75mm 35mm



3mm



10mm



/

100mm 45mm
125mm 45mm



Other standard types and sizes also are available as requested.



Features:

Top quality CBN and diamond abrasives.

Special metal or hybrid bond.

Highest high form-holding

Wear and load resistance to achieve superior grinding and cutting performance

Wheels with long time lasting sharp cutting edges.

Economical for round tools manufacture.



Application picture for reference
