Name: 1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 9A3
Price: 50.00 USD
Availability: InStock

Home Products Resin Bond Diamond Wheels

1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy

Product Details:

Place of Origin:	China
Brand Name:	Shine Abrasives
Certification:	ISO
Model Number:	4V2 1A1 14A2 9A3

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	FOB
Packaging Details:	one in paperbox
Delivery Time:	5 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 PCS in one week

Contact Now

Detailed Product Description

Grain Size:	Customized	Wheel Grit:	240-700
Abrasive Type:	Diamond	Bondpercentage:	Resin Content Typically 10%-30%
Surface Finish:	Customized	Hole Diameter:	Customized
Availability:	Resin/Ceramic/metal	Life Span:	Long
Edge Retention:	High	Max Speed:	Customized
Materialcompatibility:	Ceramics, Glass, Carbide, Concrete, Stone	Grit:	Customized
Wheel Surface Finish:	Rough/Medium/Smooth	Abrasive:	Diamond,Super Abrasive,CBN
Ease Of Use:	Easy
Highlight:	resin bond diamond grinding wheels , diamond polishing wheels for hard alloy , 1A1 resin bond diamond wheels

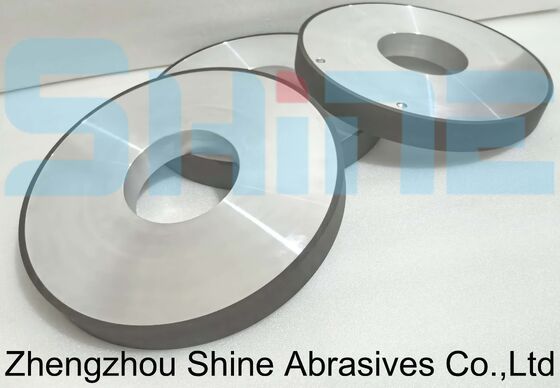

1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy

1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy are widely used in automotives, motorcycles, aerospace, refrigerator compressor, sewing machine components, hydraulics, bearings, semiconductors, solar energy and other industries. Customized honing stones, honing tools are available. Please provide the following information: Honing machine model: horizontal or vertical; Bore type: open through bore, blind, etc.

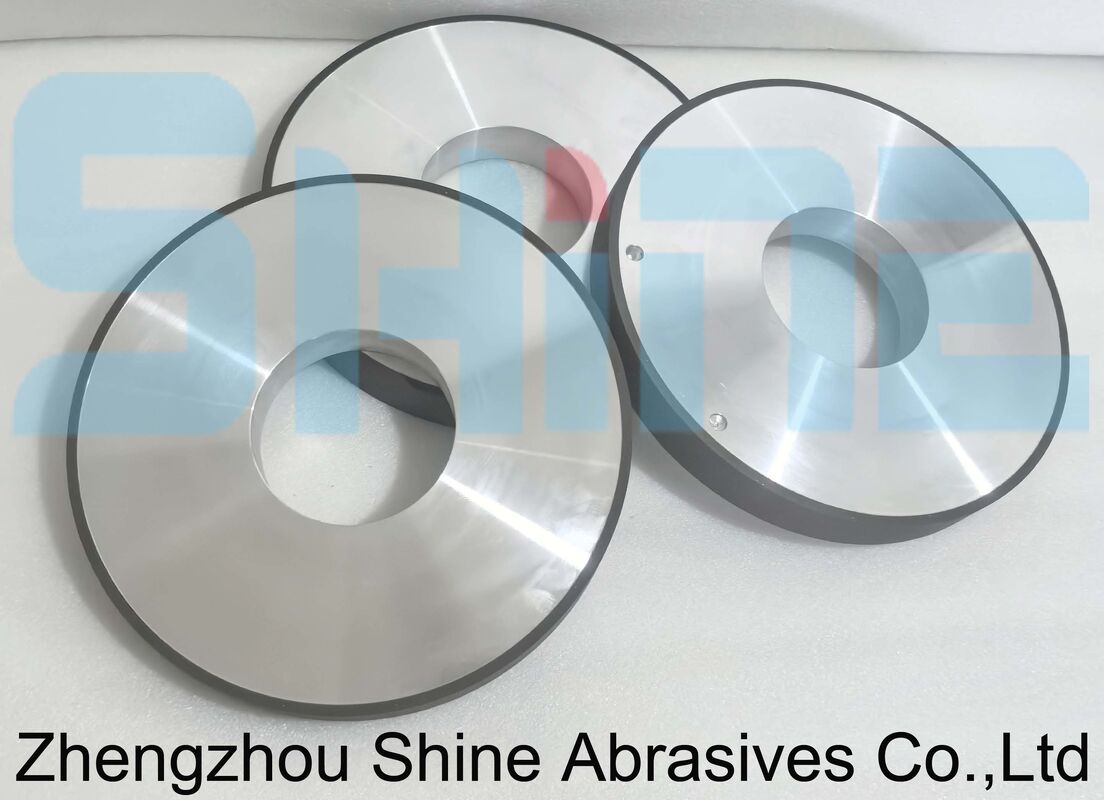

1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy 0

Type	1A1 Flat metal bond diamond grinding wheel
Concentration	50%,75%,125%,150%
Mesh	46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification	D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized
Application	ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc

*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools

*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents

*The particle size can reach up to 10000#
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.

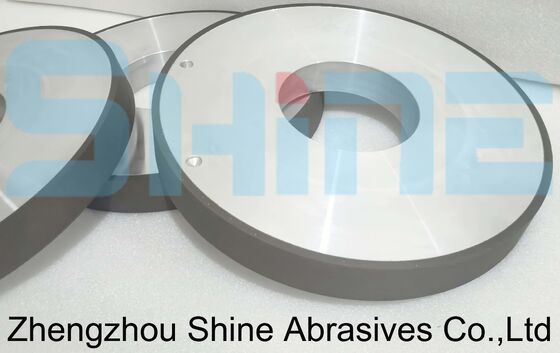

1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy 1
