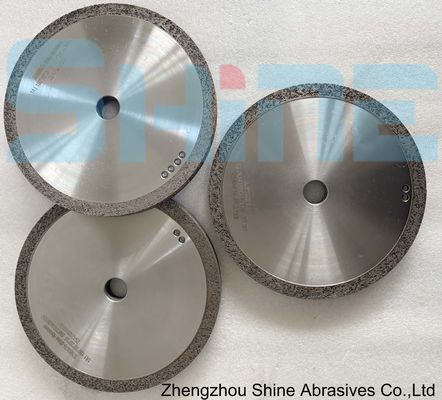

Name: 1A1 180mm metal bond diamond wheel for technology ceramics grinding
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 9A3
Price: 50.00 USD
Availability: InStock

Home Products Metal Bond Grinding Wheels

1A1 180mm metal bond diamond wheel for technology ceramics grinding

Product Details:

Place of Origin:	China
Brand Name:	Shine Abrasives
Certification:	ISO
Model Number:	4V2 1A1 14A2 9A3

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	FOB
Packaging Details:	one in paperbox
Delivery Time:	5 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 PCS in one week

Contact Now

Detailed Product Description

Radius:	3mm	Viscosity:	Standrad,good,as Required
Maximum Operating Speed:	6,000-12,000 RPM	Max Working Speed:	High
Application:	Grinding, Sharpening, Cutting Of Hard Materials	Compatibility:	Suitable For CNC And Manual Grinding Machines
Wheel Hole Size:	20mm-127mm	Hs Code:	6804211000
Feature:	Durable	Max Operating Temperature:	High
Color:	Gray / Silver	Bondtype:	Metallic
Coolant Required:	Yes	Hole Diameter:	Standard
Wheel Diameter:	4-20 Inches
Highlight:	180mm metal bond diamond wheel , technology ceramics grinding wheel , metal bond grinding wheel with warranty

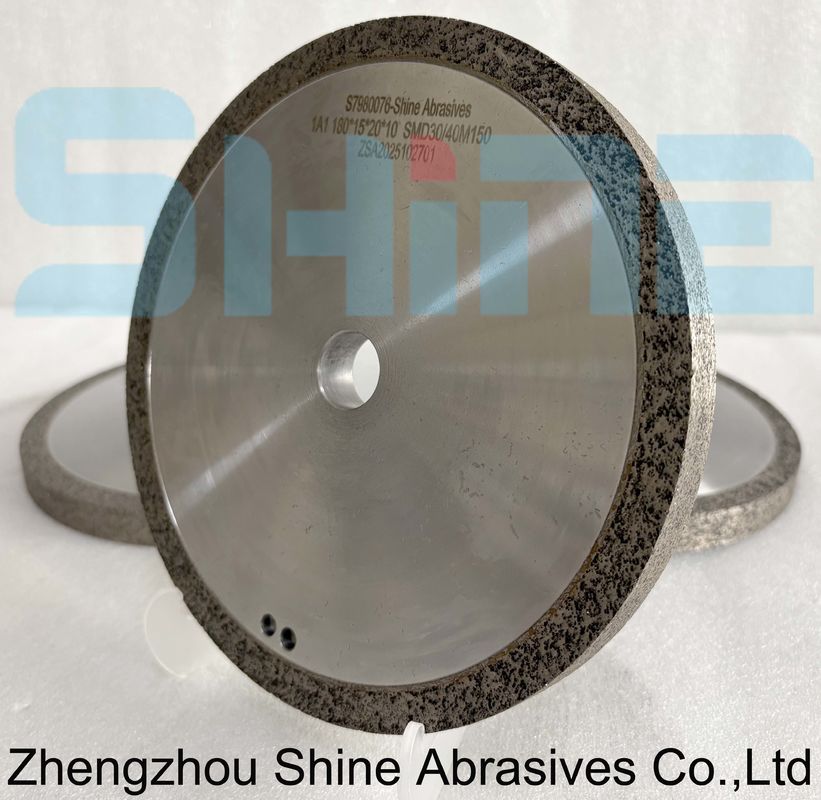

1A1 180mm metal bond diamond wheel for technology ceramics grinding

Shine Abrasives 1A1 180 mm metal bond diamond wheel for rough grinding technology ceramics works by using a metal matrix (like copper or cobalt) to securely hold diamond grits, which then grind the hard ceramic material. The main advantages are exceptional durability and form-holding stability, resulting in a longer wheel life.

Type	1A1 Flat metal bond diamond grinding wheel
Concentration	50%,75%,125%,150%
Mesh	46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification	D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized
Application	ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc

1. Long life Metal bond grinding wheels last longer than those made by other methods. This boosts productivity by cutting down on dressing frequency and wheel changes.
2. Intricate Designs Complex forms can be created, and since wear rates are low they last longer than in other types.
3. Heat quickly dissipates through the metal core. This property makes metal bond appropriate.

1A1 180mm metal bond diamond wheel for technology ceramics grinding 0
