15A2 Resin Bond Diamond Grinding Wheel for Tungsten Carbide Sharpening

15A2 Resin Bond Diamond Grinding Wheel for Tungsten Carbide Sharpening

Product Details:
Place of Origin: China
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 4V2 1A1 14A2 9A3 15A2
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: FOB
Packaging Details: one in paperbox
Delivery Time: 5 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 PCS in one week
Contact Now
Detailed Product Description
Features: Resin+Diamond + Metal Price Range: ISO9001
Coolant: Water Or Oil Thickness: 1/4
Warranty: Customized Style: 1V1
Hole Diameter: Customized Wheel Face Width: Varies
Bond Type: Resin Abrasion Resistance: High
Type: Resin Bond Diamond Wheels Wheel Grade: Soft/Medium/Hard
Form: Plain, Flanged, Threaded Abarasive Material: Diamond
Material: Diamond + RESIN Bond
Highlight:

resin bond diamond grinding wheel

,

tungsten carbide sharpening wheel

,

15A2 diamond grinding wheel

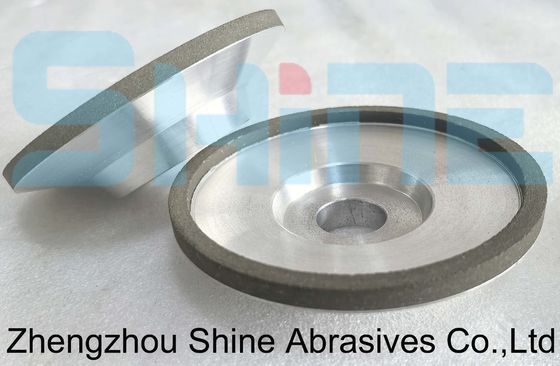

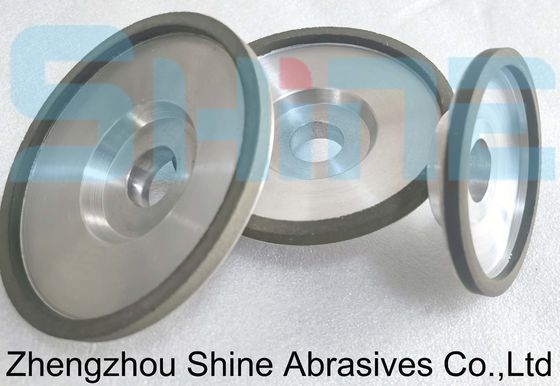

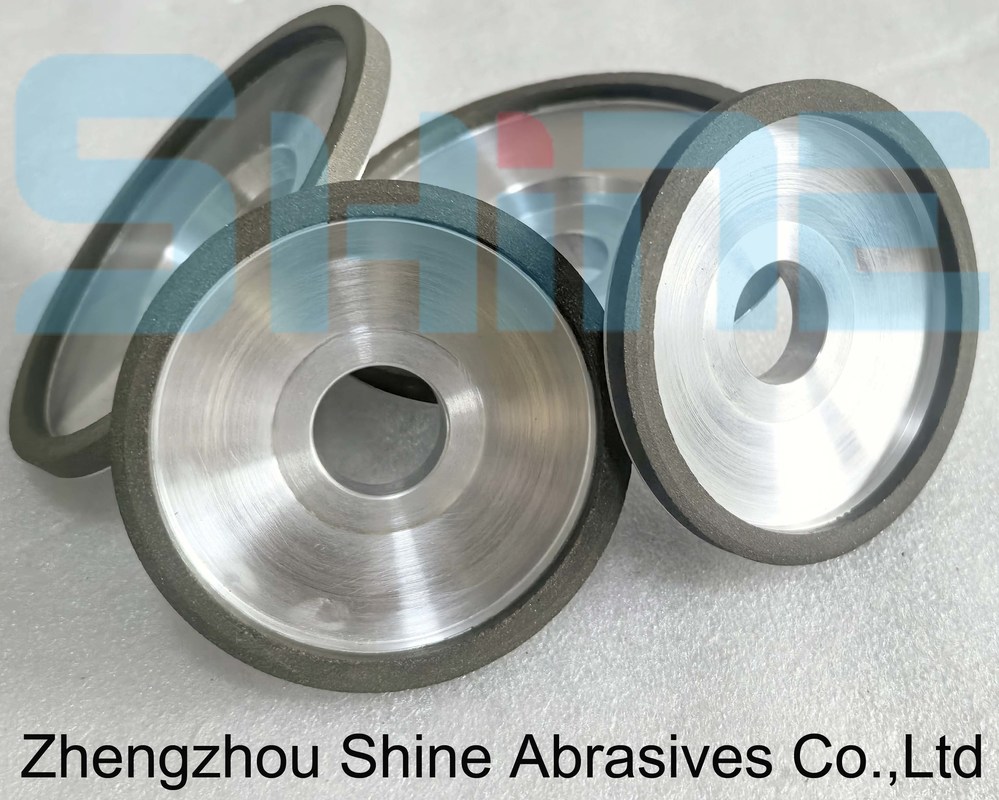

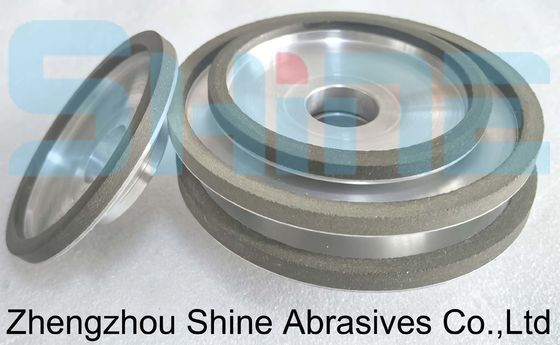

15A2 Resin Bond Diamond Grinding Wheel for Tungsten Carbide Sharpening

Shine Abrasives 15A2 shape resin bond CBN wheels are specifically designed for grinding and sharpening steel materials.This wheel shape combines efficiency and precision, making it ideal for various grinding and sharpening applications in manufacturing processes.CBN wheels have a longer lifespan than traditional abrasive wheels due to the hardness of CBN and the durability of the resin bond.







D T H X V
mm Inch mm Inch state bore dimension mm Inch 70°
75 3 35 1-1/4 3-6 1/8-1/4
100 4 35 1-1/4 3-6 1/8-1/4
125 5 35 1-1/4 3-6 1/8-1/4
150 6 35 1-1/4 3-6 1/8-1/4
Other dimensons are available on request



* High cutting efficiency, good self-sharpening, less blocking, reducing the grinding burn occurs when the phenomenon of work
* Good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes
* Compared to conventional silicon carbide , resin diamond wheel has good material removal rates, longer wheel life and lower grinding costs
* Resin bond diamond wheels generally remove material up to 10 times faster than metal bond wheels

15A2 Resin Bond Diamond Grinding Wheel for Tungsten Carbide Sharpening 0
