3A1 500mm Resin Bond Diamond Wheel for HVOF Carbide Grinding

Product Details:

Place of Origin:	China
Brand Name:	Shine Abrasives
Certification:	ISO
Model Number:	4V2 1A1 14A2 9A3 3A1

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	FOB
Packaging Details:	one in paperbox
Delivery Time:	5 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 PCS in one week

Contact Now

Detailed Product Description

Wheel Hole Size:	1-1.25 Inches	Bore:	Various Bores Available
Durability:	High	Wheel Shape:	Varies
Wheel Diameter:	4 Inches, 6 Inches, 8 Inches	Wheel Bore:	Varies
Maximum Speed:	6000 RPM	Wheel Speed:	Varies
Wheel Type:	Straight, Cup, Dish	Cutting Ability:	High
Edge Type:	Straight, Beveled, Radius	Compatibility:	Metal, Ceramic, Glass
Wheel Arbor Hole:	Varies	Application:	Grinding, Polishing, Sharpening
Wheel Grit:	240-700
Highlight:	500mm resin bond diamond wheel , HVOF carbide grinding wheel , large resin diamond grinding wheel

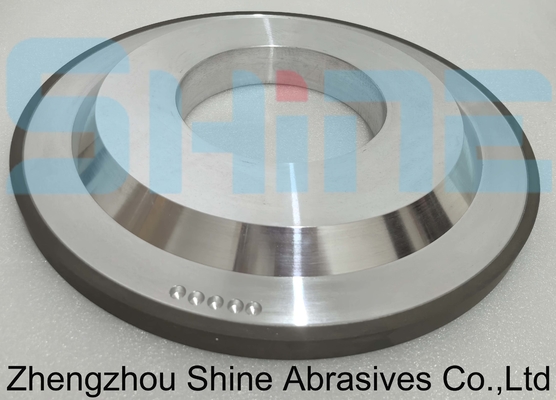

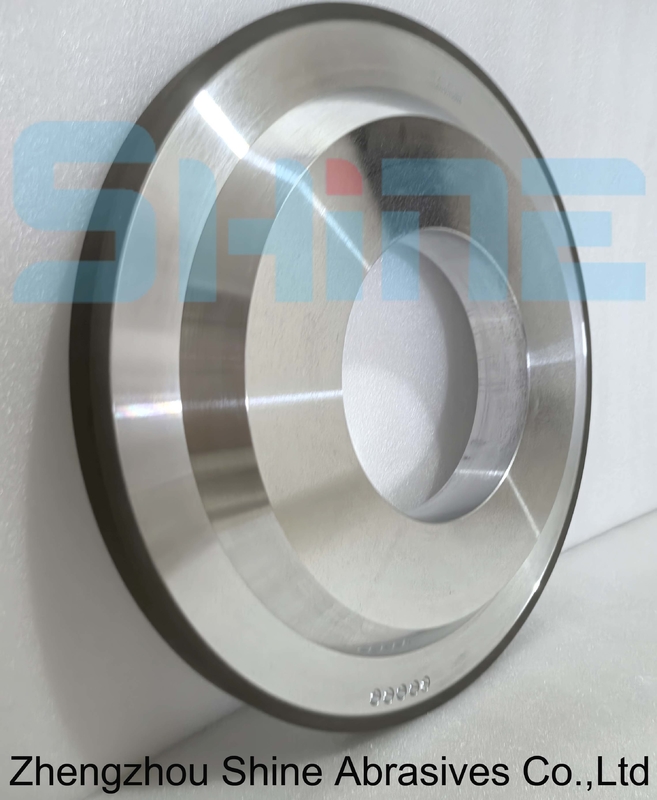

3A1 500mm Resin Bond Diamond Wheel for HVOF Carbide Grinding

Product Specifications

Attribute	Value
Wheel Hole Size	1-1.25 inches
Bore	Various bores available
Durability	High
Wheel Shape	Varies
Wheel Diameter	4 inches, 6 inches, 8 inches
Wheel Bore	Varies
Maximum Speed	6000 RPM
Wheel Speed	Varies
Wheel Type	Straight, Cup, Dish
Cutting Ability	High
Edge Type	Straight, Beveled, Radius
Compatibility	Metal, Ceramic, Glass
Wheel Arbor Hole	Varies
Application	Grinding, Polishing, Sharpening
Wheel Grit	240-700

Product Description

3A1 Resin bond diamond wheels are specifically designed for grinding hard materials, including those coated with High-Velocity Oxygen Fuel (HVOF) carbide coatings. These wheels utilize a resin matrix to bond diamond abrasives, providing flexibility and effective cutting performance. The resin formulation can be tailored to specific grinding requirements, allowing for optimization based on material type and application.

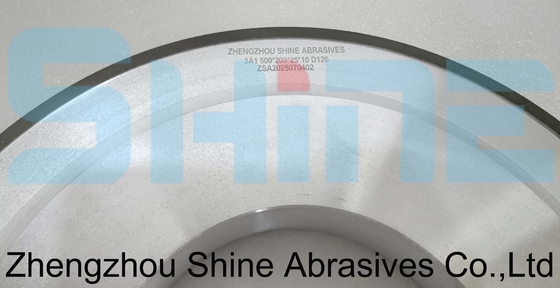

Wheel shape:	3A1
Dia:	500mm
Diamond depth:	25mm
Diamond width:	10mm
Body depth:	50mm
Bore size:	203mmH7
Grit Size:	D126

High-quality diamond particles embedded in the wheel provide exceptional hardness and cutting efficiency, ideal for grinding tough carbide materials. The cooling properties of resin bonds help minimize heat buildup during grinding, which is crucial for maintaining the integrity of carbide materials.
