Name: 60D 1A1 Flat Metal Grinding Wheel Hybrid for Carbide Glass Ceramics
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2
Price: 50.00 USD
Availability: InStock

Home Products Metal Bond Grinding Wheels

60D 1A1 Flat Metal Grinding Wheel Hybrid for Carbide Glass Ceramics

Product Details:

Place of Origin:	China
Brand Name:	Shine Abrasives
Certification:	ISO
Model Number:	4V2 1A1 14A2

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	FOB
Packaging Details:	one in paperbox
Delivery Time:	5 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 PCS in one week

Contact Now

Detailed Product Description

Wheel Structure:	Single Layer Or Multi-Layer	Applacation:	Dressing
Radius:	3mm	Maximum Speed:	12,000 RPM
Diameter:	4 Inches, 6 Inches, 8 Inches	Cooling Method:	Dry, Wet
Color:	Silver Or Gold	Coolant Type:	Dry, Wet
Abarasive Material:	Diamond Or CBN	Max Working Speed:	High
Compatibility:	Metal, Stainless Steel, Hard Alloys	Thickness:	1/4 Inch, 1/2 Inch, 1 Inch
Suitable Materials:	Metal, Ceramic, Glass, Stone	Max Rpm:	Customized
Abrasive Material:	Metal Bond
Highlight:	Hybrid Metal Grinding Wheel , Carbide Glass Ceramics Metal Grinding Wheel , 60D Metal Grinding Wheel

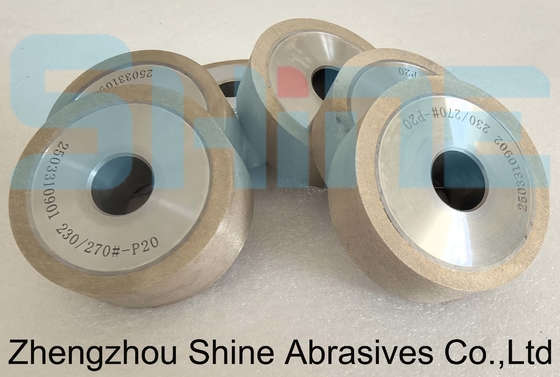

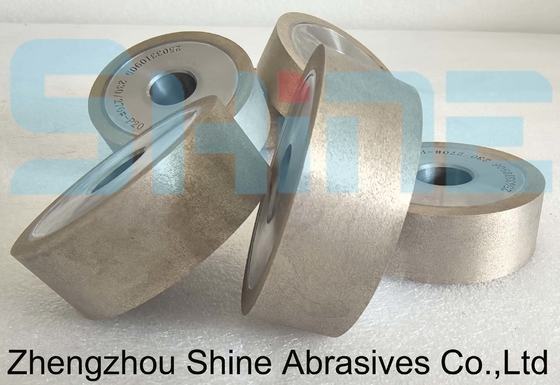

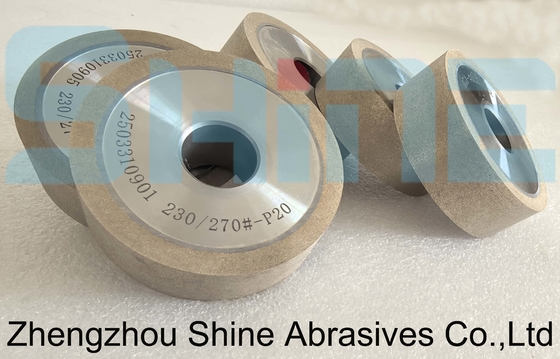

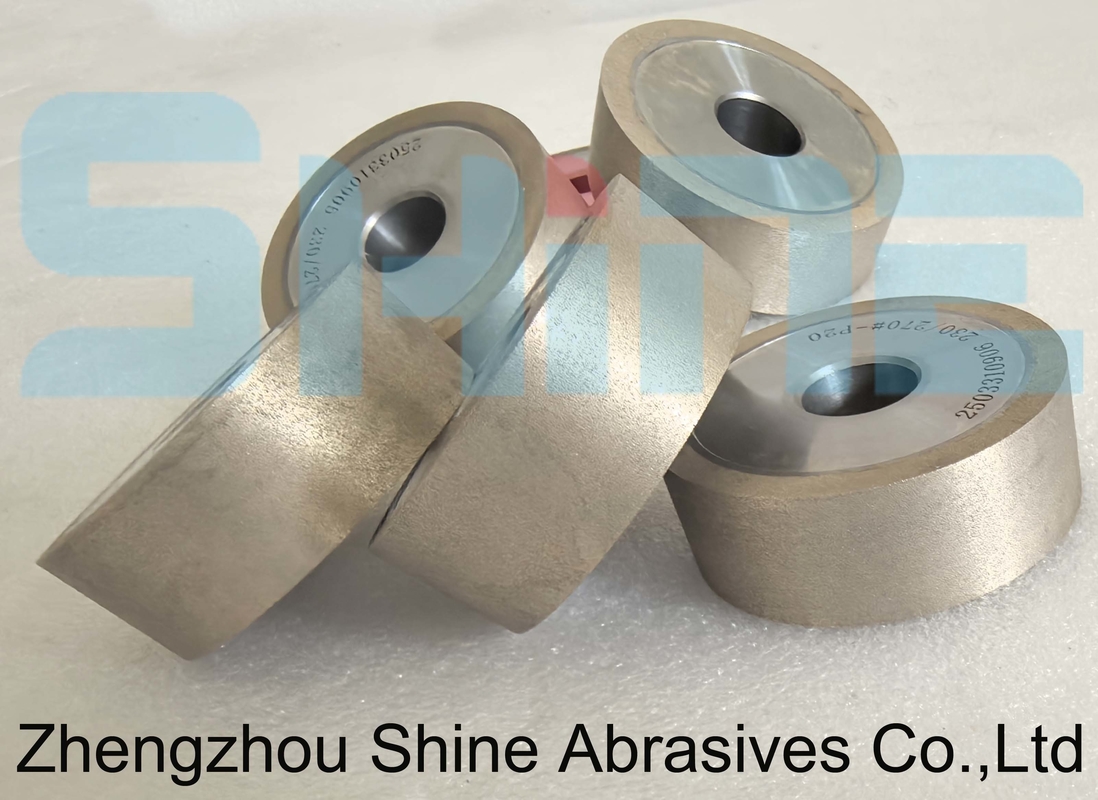

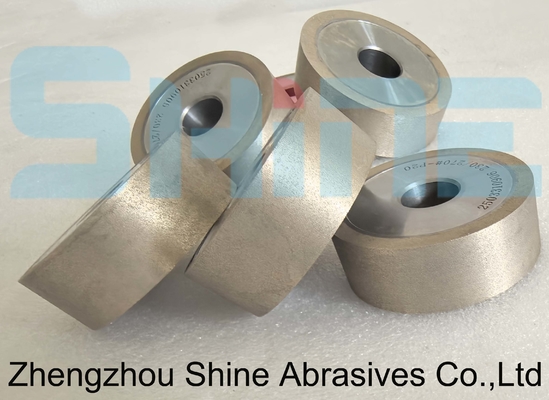

60D 1A1 Flat Metal Grinding Wheel Hybrid for Carbide Glass Ceramics

Shine Abrasives 60D 1A1 flat metal bond and resin bond enables highly efficient and high grade grinding of material that are difficult to grind. Hybrid bonding technology combines the wear resistance of metal bonds with the porosity of resin bonds. The porous structure of the abrasive yields improved diamond/CBN exposure.

Type	1A1 Flat metal bond diamond grinding wheel
Concentration	50%,75%,125%,150%
Mesh	46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification	D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized
Application	ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc

1. Resin (polyimide) bond. Good grinding performance and surface roughness, elasticity, minimal chipping
2. Metal bond. High wear resistance and high thermal stability, excellent grinding ability and long tool life
3. Dressing interval: more than double
4. Tool life: more than 1.5 times

60D 1A1 Flat Metal Grinding Wheel Hybrid for Carbide Glass Ceramics 0
