Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Hardness: | Standard,Superhard Diamond,as Required | Country Of Origin: | China |
|---|---|---|---|
| Maximum Operating Speed: | 6000-12000 RPM | Wheel Grade: | Varies |
| Wheel Cooling: | Available | Wheel Price: | FOB |
| Abrasive Material: | Diamond | Life Span: | Long |
| Max Operating Speed: | Customized | Shape: | Flat-Shaped,Cup-Shaped |
| Form: | Plain, Flanged, Threaded | Wheel Shape: | Flat/Cup |
| Cbn Rim Size: | 1.3x10mm | Abarasive Material: | Diamond |
| Bond: | Resin,metal | ||
| High Light: | CBN Resin Bond Diamond Wheels,Shine Abrasives Resin Bond Diamond Wheels |
||

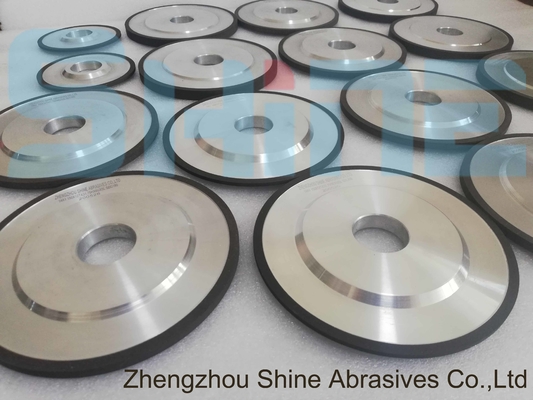

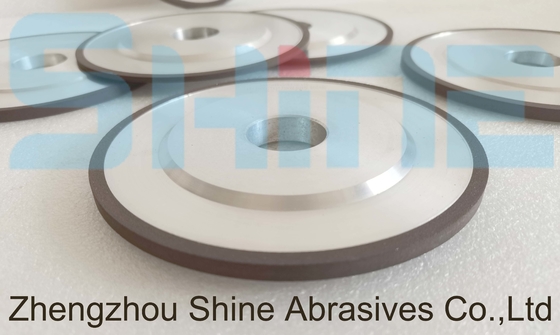

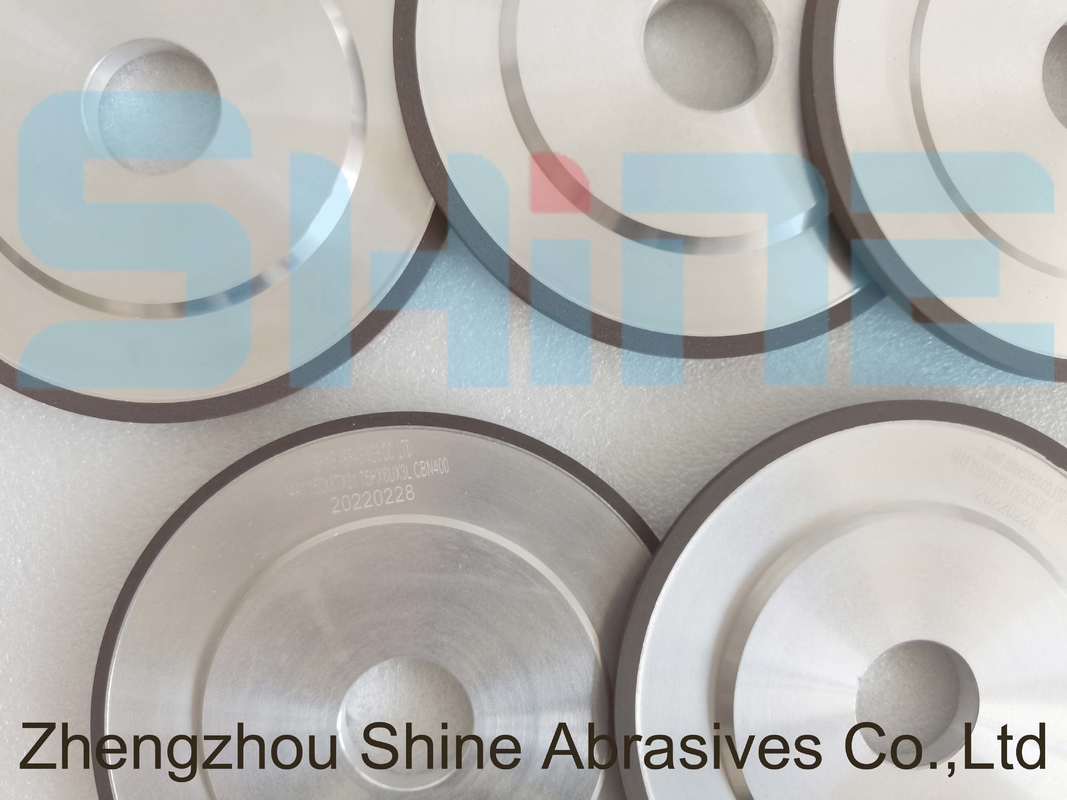

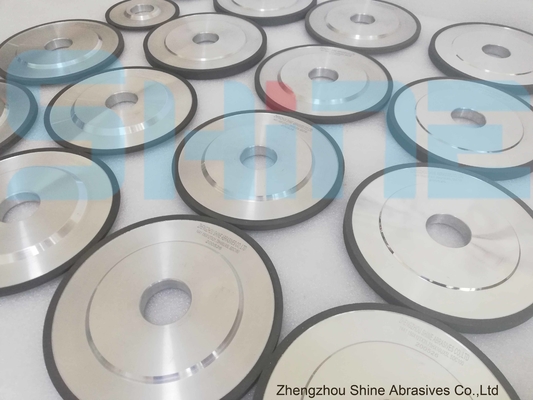

Diamond / CBN wheels for CNC Grinder
Resin bond, high quality diamond, special technology, used on 5-axis CNC grinders for the grinding of tungsten carbide or HSS alloy steel tools
| Diameter(mm) | Total Thickness(mm) | Hole(mm) | Abrasive Layer Thickness(mm) |
| 100 | 3/5/8/10 | 10/20/25/31.75/40 | 3/5/6/8/10 |
| 125 | 3/5/8/10/15/20 | 16/20/25/31.75/40 | 3/5/6/8/10 |
| 150 | 5/8/10/15/20/25 | 16/20/25/31.75/40 | 3/5/6/8/10 |
| 200 | 5/8/10/15/20/25/30 | 20/25/31.75/40/50.8 | 3/5/6/8/10/15/20 |
| 300 | 15/20/25/30/35/40 | 127/203 | 5/10 |
| 350 | 15/20/25/30/35/40/50 | 127/203 | 10 |
| 400 | 15/20/25/30/35/40/50 | 203/305 | 10 |
| 500 | 15/20/25/30/35/40/50 | 203/305 | 10 |
| 600 | 15/20/25/30/35/40/50 | 203/305 | 10/16/25.4/38/50 |
| 750 | 15/20/25/30/35/40/50 | 203/305 | 10/16 |
| 850 | 15/20/25/30/35/40/50 | 203/305 | 10/16/20 |
| 900 | 15/20/25/30/35/40/50 | 203/305 | 10/16/25.4/38/50.8 |
Diamond / CBN Wheel for Profile Grinding
Profile diamond and CBN wheels for different materials such as hardened steels, tungsten carbide. Sharpness and accuracy, excellent form holding
Diamond / CBN Wheels with Ceramic Body
Resin diamond / cbn wheel with ceramic body, mainly for die industry, excellent heat resistance, deep feed and high stock removal.
