Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 1A1R |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Hardness: | High | Bond Type: | Resin |
|---|---|---|---|
| Shape: | Cup | Color: | Silver |
| Advantages: | High Working Efficiency | Wheel Structure: | 1A1R |
| Material: | Diamond | Rim Size: | 8x3mm |
| Grit: | Customized | Bond: | Electroplated |
| Hs Code: | 8207901000 | Wheel Type: | Straight |
| Wheel Hole Number: | Varies | Abrasive Material: | Diamond |
| Wheel Color: | Varies | ||
| High Light: | ODM Cut Wheels,Cutoff Machines Cut Wheels,1A1R Cut Wheels |
||

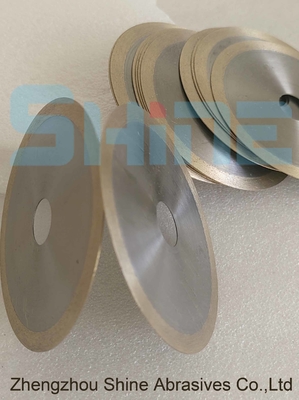

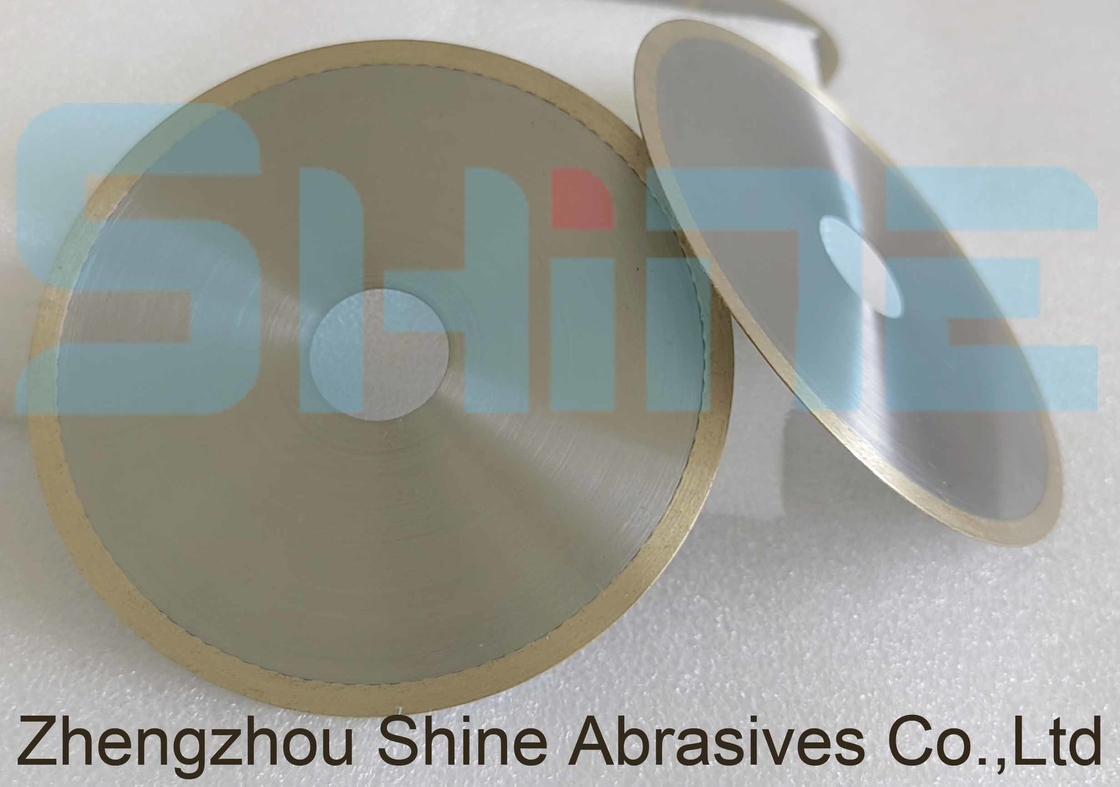

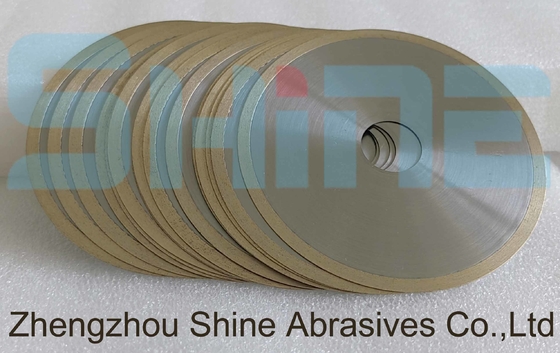

Metal Bond Diamond Cut Off Wheels, CBN Cut off Wheels, Ultra thin Diamond Dicing Blades.
Metal bond diamond cut off wheels with steel core is produced with high strength, high rigidity steel plate with sintered metal bonded abrasives layer. Compared with resin bond, the thickness is thinner with higher rigidity, suitable for deep cutting off or grooving.
| Diameter (D) | Abrasive Thickness (T/U) | Hole Diameter (H) | Abrasive Width (X) |
| 60, 75, 80 | 0.3, 0.5, 0.6 | 10, 20 | 5 |
| 100 | 0.5, 0.6, 0.8, 1.0, 1.2 | 10, 20, 22, 31.75, 32 | 5, 10 |
| 125 | 0.8, 1.0, 1.2, 1.5 | 20, 22, 31.75, 32 | 5, 10 |
| 150 | 0.8, 1.0, 1.2, 1.5 | 20, 22, 31.75, 32 | 5, 10 |
| 180 | 0.8, 1.0, 1.2, 1.5 | 20, 22, 31.75, 32 | 5, 10 |
| 200 | 1.0, 1.2, 1.5, 1.6 | 20, 22, 31.75, 32 | 5, 10 |
| 250 | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 | 20, 22, 31.75, 32 | 5, 10 |
| 300 | 1.2, 1.5, 1.6, 1.8, 2.0 | 20, 22, 31.75, 32 | 10 |
| 350 | 1.5, 1.6, 1.8, 2.0, 2.2, 2.6, 3.0 | 20, 22, 31.75, 32 | 10 |
| 400 | 1.5, 1.6, 1.8, 2.0, 2.2, 2.6, 3.0 | 20, 22, 31.75, 32 | 10 |
Other sizes are available upon request.
Features:
High cutting efficiency.
High abrasion resistance with longer life.
Better form stability.
