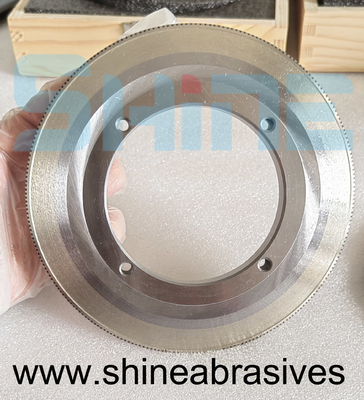

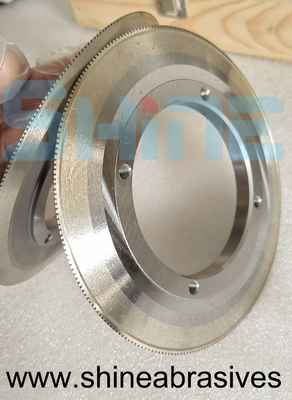

40 Grit Diamond Dressing Wheel High Accuracy

40 Grit Diamond Dressing Wheel High Accuracy

  • 40 Grit Diamond Dressing Wheel High Accuracy
  • 40 Grit Diamond Dressing Wheel High Accuracy
  • 40 Grit Diamond Dressing Wheel High Accuracy
  • 40 Grit Diamond Dressing Wheel High Accuracy
40 Grit Diamond Dressing Wheel High Accuracy
Product Details:
Place of Origin: China
Brand Name: SHine Abrasives
Certification: ISO
Model Number: 1A1
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: FOB
Packaging Details: one in paperbox
Delivery Time: 5 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs in one week
Contact Now
Detailed Product Description
Accuracy: High Durability: High
Hardness: High Material: Diamond
Performance: High Product Name: Diamond Dressing Tools
Sharpness: High Tolerance: High
Versatility: High Coating: Diamond Dressing Wheels
Grit: 40#-200# Shape: Cylinder
Size: Customized
High Light:

40 grit diamond dressing wheel

,

high accuracy diamond dressing wheel

CVD Rotary Dresser Diamond dressing wheel dresser roller diameterCVD Diamond Dresser Roll

Diamond dressing rollers are used in the machining industry:
1. Automobile industry: crankshaft, valve body, piston ring, oil needle, universal joint, hub bearing unit, inner and outer ball cage.
2. Machine tool industry: ball screw and guide rail slider.
3. Bearing industry: ball bearing track, linear track pair, tapered bearing, cylindrical bearing track, textile bearing, wind power bearing.
4. Tool industry: drill bit, milling cutter grooving and cutting edge, tap, thread, caliper, micrometer, saw blade industry.
5. Light industry: compressor industry, bicycle axis.
6. Hydraulic industry: plunger pump connecting rod, etc.
7. Aerospace and military industry: turbine engine blades.
8: Gear industry: automobile gearbox gears, aircraft engine gears (worm wheel grinding machine. (CNC) numerical control forming gear grinding machine. (CNC) numerical control forming arc gear grinding machine).

40 Grit Diamond Dressing Wheel High Accuracy 0



Special diamond roller for bearing industry

Many people know that the diamond pen is used to trim the grinding wheel. They do not know that the bearing diamond roller dresser can also trim the grinding wheel, and how to use it is not clear. This experience will introduce how the bearing diamond roller dresser trims the grinding wheel.

The so-called diamond roller is a grinding wheel dressing tool with high efficiency, high service life and low cost, which embeds a large number of diamond particles on the surface of steel roller by means of electroplating or powder metallurgy and is used in special machine tools and gear grinding machines for mass forming grinding.

Step 1: definition of bearing diamond roller dresser

The so-called bearing diamond roller dresser is a high-efficiency, high-life and low-cost grinding wheel dresser that embeds a large number of diamond particles on the surface of steel rollers by electroplating or powder metallurgy and is used for mass forming grinding.

Rotating at a certain speed (so as to reduce the relative speed between the roller and the grinding wheel) will grind and roll the surface of the high-speed rotating grinding wheel, so that the grinding wheel can obtain a sharp working surface consistent with the roller profile.

The bearing diamond roller dresser can effectively replace the single crystal diamond pen to trim the grinding wheel, its production efficiency is greatly improved, and the surface quality and precision of the machined parts are higher.

Step 2: advantages of bearing diamond roller dresser over diamond pen

The structure of diamond pen is generally composed of diamond and handle body. It looks like a "pen", so people like to call it "diamond pen". The main working part is the pen tip. If you have any consultation, you can contact

The HNT bearing diamond roller dresser is a non-standard customized product. It is a roller similar to the grinding wheel designed and manufactured according to the contour shape, size and required accuracy of the processed parts. It has low technical requirements for the operators, good consistency of the processed product accuracy, stable quality, and easy to realize grinding automation.
