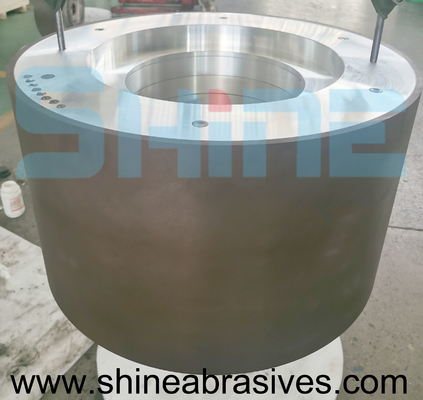

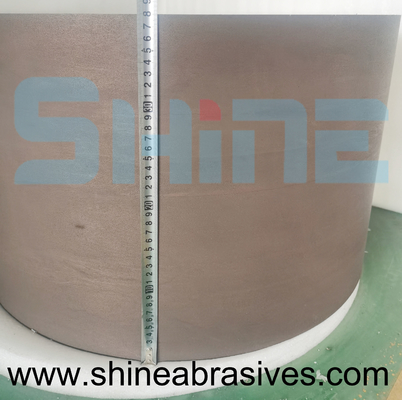

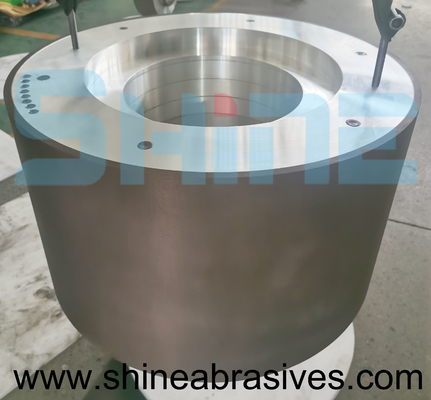

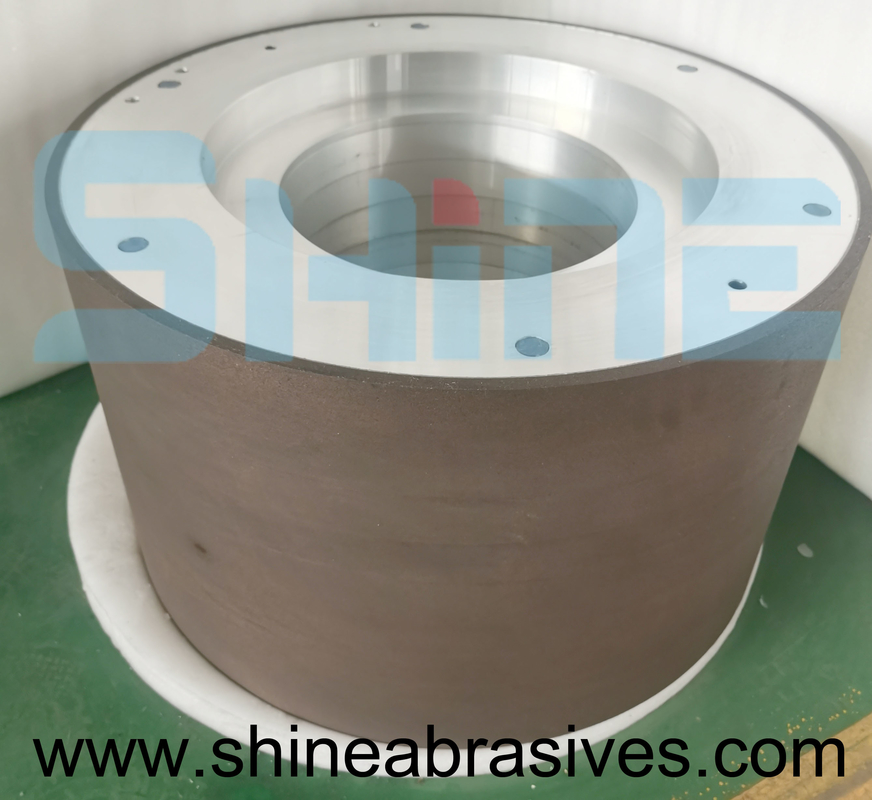

Diamond Centerless CBN Grinding Wheel 700mm 6A1 9A1

Centerless Diamond & CBN Grinding Wheel For The Centerless Grinding Machines

Application Of Centerless Diamond Grinding Wheels

Rough, semi-finish and finish grinding of cemented carbide bars , PDC Cutter (Polycrystalline Diamond Compacts), tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN composites.

Features Of Centerless Diamond Grinding Wheels

High roundness , good surface finish, superior grinding action, bulk removing of materials, competitive price, long life .

Specification Of Centerless Grinding Wheels

Model	D (mm)	H (mm)	T (mm)	T (mm)
1A1	200	75	50	5, 10
	305	120	150	5, 10
	350	127	125	5, 10
6A2	400	203	150	5, 10
	455	228	205	5, 10
	500	127	205	5, 10
9A1	600	305	125, 150, 200	5, 10
	650	305	125, 150, 200	5, 10
	700	305	200, 400, 600	10
Other specification can be made according to customers requirements

Centerless Wheels For The Centerless Grinding Machines:

Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel.The mainly centerless grinding machines: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV and so on.

Diamond centerless grinding wheel for tungsten carbide has the following features:

1. Long life span
2. Fine grit, standing sharp
3. Efficient batch external grinding
4. Good surface finish after fine grinding
5. Good precision keeping and wear-resistance
6. Used for rough grinding, semi-fine grinding and fine grinding
7. High roundness and cylindricity of workpiece and good consistency of dimension
