Place of Origin: | CHINA |
Brand Name: | Shine Abrasives |
Certification: | ISO |
Model Number: | 6A1 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiate |
Packaging Details: | 1 pcs in one carton or wooden case |
Delivery Time: | 5 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000 PCS per week |
Shape: | 9A1 | Diameter: | 300mm |
---|---|---|---|
Bond Type: | Resin | Grit Size: | D126 |
Diamond Rim Size: | 150x10mm | HS Code: | 6804211000 |
Highlight: | 300mm abrasive diamond wheels,Bearing Parts Centerless Grinding Wheels,Abrasive Diamond Centerless Grinding Wheels |

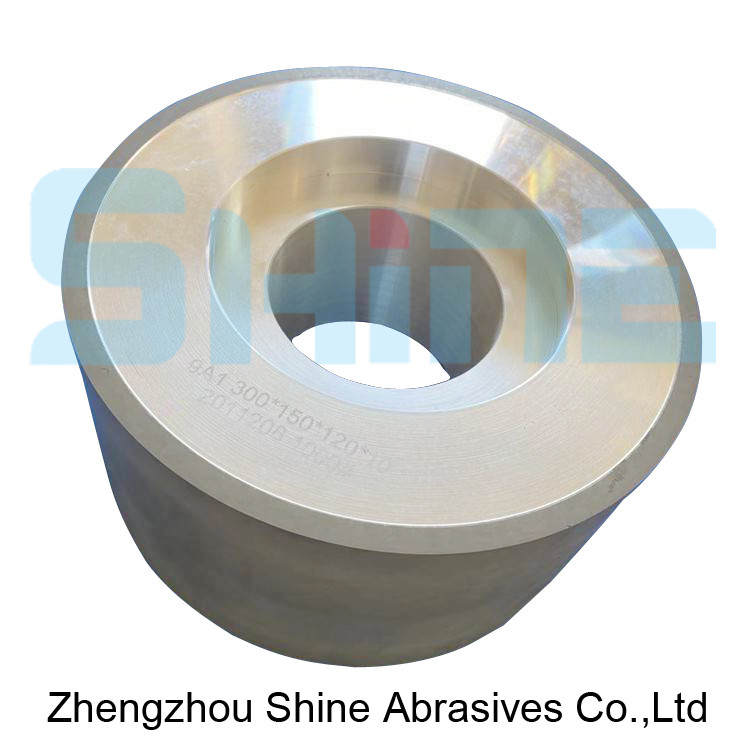

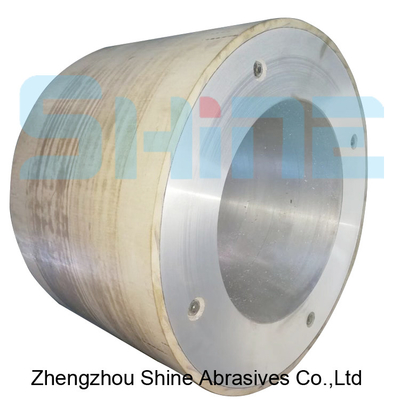

Centerless Grinding Wheels 9A1 300mm Diamond For Bearing Parts
Shine Abrasives Resin Bond Diamond and CBN centerless wheels mainly are used for tungsten carbide cutting tools,
bearing parts, automobile parts, plungers,cylinders,engine valves.
Our Centerless wheels are divided into Roughing and Finishing.
The finest diamond grit used for centerless Finishing wheel can be 2000mesh, to provide mirror polishing result.
Capacity for the wheel we can make
Max Diameter : 750mm.
Max Thickness: 400mm.
Main sizes form of Shine Abrasives Centerless Grinding Wheels 9A1 300mm Diamond For Bearing Parts
Abrasive Material:Diamond | Bond Type:Resin |
Diamond Grit:D126 | Wheel Diameter: 300mm |
Wheel Bore:127mm | Wheel Weight:35kgs/PC |
Wheel Thickness:150mm | Concentrate: 100% |
Other standard sizes also are available as requested.
Features of Shine Abrasives Centerless Grinding Wheels 9A1 300mm Diamond For Bearing Parts
Good self-sharpening
Sharp cutting edges
High efficiency at grinidng
Less heat generating when working
High surface finish after grinding
Centerless Grinding Methods Introduction
1. Centerless cylindrical grinding machine with fixed grinding wheel frame, the grinding wheel frame of this type of centerless grinding machine is fixed on the bed, and the guide wheel and the bracket can be relatively adjusted and moved. During through grinding or plunge grinding, the guide wheel, Brackets and Workspiece together for feed and compensation movement.
2. Grinding wheel frame mobile centerless cylindrical grinding machine, the bracket of this form of centerless grinding machine is fixed on the bed, the grinding wheel frame and the guide wheel frame can be adjusted relative to the bracket, and can be fed in special cases. such unintentional
Most of the grinding wheel and guide wheel spindle of the grinding machine adopt the form of double support structure.
3. Inclined centerless cylindrical grinder, the center line of the grinding wheel and guide wheel in this form is inclined at an angle of α to the horizontal plane. The bracket is fixed on the bed, and the grinding wheel and the main shaft of the guide wheel are double-supported structures. The guide wheel frame can be adjusted relative to the bracket Movement, the grinding wheel frame makes a feed compensation movement.
Application picture for reference.
