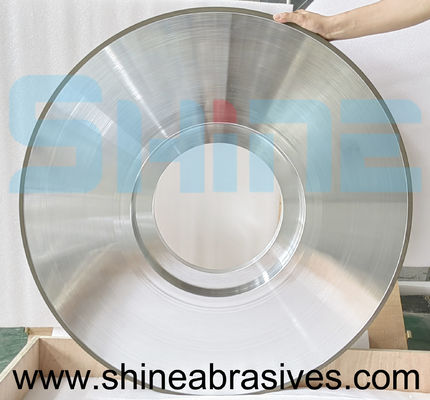

Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel

Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel

  • Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel
  • Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel
  • Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel
  • Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel
Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel
Product Details:
Place of Origin: China
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 1A1
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: FOB
Packaging Details: one in one paperbox
Delivery Time: 5 work days
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs in one week
Contact Now
Detailed Product Description
Size: Required Hardness: Superhard Diamond,as Required
Shape: Flat-Shaped Abrasive: Diamond,CBN
Viscosity: Good,as Required Bonding Agent: Resin
Application: Diamond Wheel For CNC Tool Bond: Resin
Usage: Sharpening Product Name: Resin Bond Diamond Grinding Wheel For Carbide
Grit: 24-320# Color: Black And Red
Material: Rsin And Diamond,Diamond + Metal Name: Resin Bond Diamond Grinding Wheels For Tungsten Carbide,Vitrified CBN Diamond Grinding Wheel Manufacturer
Type: Flat Body Material: Aluminum Or Steel
Abarasive Material: Diamond Thickness: 5~300mm
Bonding: Resinoid
High Light:

Resin Bond Diamond CBN Wheels

,

Shine Abrasives Diamond CBN Wheels

,

1A1 Resin Bond Diamond CBN Wheels

 Shine Abrasives 1A1 Diamond & CBN Wheels for Carbide Sharpening or steel

Diamond Resin Bond Wheels and CBN Resin Bond Wheels have been developed to meet the needs of precision grinding of hard materials. Natural and synthetic diamond and CBN abrasives manufactured with our high temperature bonds, guarantee high performing wheels that will grind hard materials. Wheel sizes for most CNC machines and wheels shapes for your grinding applications. If you do not find your required wheel we can manufacture to your specific needs.

Diamond resin bond wheels are used in grinding carbide, ceramics, alumina, quartz, plasma sprays, composites, and many other dense materials. Natural Diamonds being the first super abrasives used had limited success because of the thermal damage that would occur at 1300F. Today's Synthetic Diamonds can be Copper-coated, Nickel-coated, or UN-coated in multiple sizes and shapes. In most applications Synthetic and Natural Diamonds should be used with a synthetic coolant rather than dry.

CBN resin bond wheels are used in grinding Tool Steels, Hardened Alloy Steels, and Super alloys such as Inconel, Hastalloy, Waspalloy, and Rene 41. CBN is a second in hardness to Diamond and will withstand temperatures of 2500F. CBN can be coated or uncoated, a micro or mono structure along with a variety of shapes and mesh sizes. In most situations CBN should be used with coolant oil or water soluble oil.


Diamond wheels manufactured with natural or synthetic diamond particles in a resin bond matrix offer high cut rates in wet or dry grinding applications on materials such as carbides, ceramics and non-ferrous metals.

Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel 0

WHEEL TYPE DIAMETER WIDTH ARBOR HOLE GRIT SIZE
1A1 DIAMOND WHEEL 5.000" 0.125"-0.500" 1.250" 100-600
1A1 DIAMOND WHEEL 6.000" 0.125"-0.500" 1.250" 100-600
1A1 DIAMOND WHEEL 7.000" 0.125"-0.500" 1.250" 100-600
1A1 DIAMOND WHEEL 8.000" 0.125"-0.500" 1.250" 100-600
1A1 DIAMOND WHEEL 10.000" 0.125"-1.000" 1.250" 100-600
1A1 DIAMOND WHEEL 12.000" 0.125"-1.000" 5.000" 100-600
1A1 DIAMOND WHEEL 14.000" 0.250"-1.000" 5.000" 100-600
1A1 DIAMOND WHEEL 16.000" 0.250"-1.000" 5.000" 100-600
1A1 DIAMOND WHEEL 18.000" 0.250"-1.000" 5.000" 100-600
1A1 DIAMOND WHEEL 20.000" 0.250"-1.000" 12.000" 100-600
1A1 DIAMOND WHEEL 22.000" 0.250"-1.000" 12.000" 100-600
1A1 DIAMOND WHEEL 24.000" 0.250"-1.000" 12.000" 100-600
1A1 DIAMOND WHEEL 26.000" 0.250"-1.000" 12.000" 100-600
1A1 DIAMOND WHEEL 28.000" 0.250"-1.000" 12.000" 100-600
1A1 DIAMOND WHEEL 30.000" 0.250"-1.000" 12.000" 100-600



Any nonstandard size and grits size can customised (tell us size or drawing is enought)



Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel 1

Shine Abrasives 1A1 Resin Bond Diamond CBN Wheels For Carbide Sharpening Or Steel 2

Product Features.

1. Good self-sharpening and sharp cutting
2. High efficiency and high precision
3. High resistence and best polishing
4. Low roughness of work piece surface
5. Less heat generating
6. Without burning work piece
