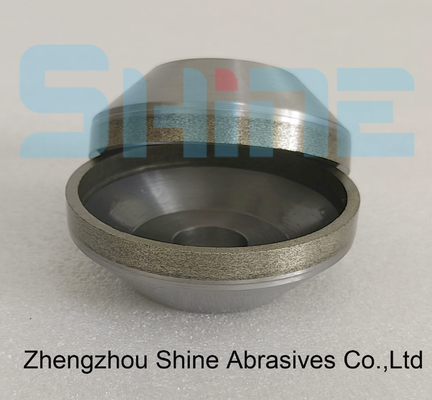

3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape

3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape

  • 3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape
  • 3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape
  • 3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape
  • 3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape
3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape
Product Details:
Place of Origin: CHINA
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 11A2 Bowl Shape
Payment & Shipping Terms:
Minimum Order Quantity: 2 PCS
Price: Negotiate
Packaging Details: 1 pcs in one paper box
Delivery Time: 5 working days
Payment Terms: Negotiate
Supply Ability: 10000 pcs per week
Contact Now
Detailed Product Description
Shape: 11A2 Bowl Shape Diameter: 3 Inch 75mm
Bond Type: Metal-Ceramic Hybrid Grit Size: CBN120#
Diamond Rim Size: 3x5mm Country Of Origin: China
High Light:

Metal Bonded CBN Grinding Wheel

,

Metal Bonded Grinding Wheel 3'' 75mm

,

Bowl Shape Metal Bonded Grinding Wheel

3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape



Shine Abrasives Metal bonded grinding tools are pressed at high temperatures,

Metal bonded grinding wheels are used for grinding sapphire ceramics and oxide ceramics.

Metal bonded tools are created from the sintering of powdered metals and other compounds with Diamond or Cubic Boron Nitride (CBN).

This produces an extremely strong product that holds its shape. Metal Bond maintains a long tool life, with reduced need for frequent dressing. Metal Bond wheels have the hardest matrix, performing best in operations under flood coolant.



The drawing of Shine Abrasives 3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape



3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape 0

3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape 1



Main sizes form of Shine Abrasives 3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape

Abrasive Material:CBN Bond Type: Metal
CBN Grit:100# Wheel Diameter: 3inch 75mm
Wheel Bore:20mm Wheel Weight:0.5kgs/PC
Wheel Thickness:25mm Concentrate: 100%

Other standard sizes also are available as requested.



Introduction of Shine Abrasives bonded wheels and tools.



01:

Diamond and CBN grinding wheels in  resin bond:
resin bonded grinding tools ensure cool grinding and high cutting performance. Diamond and CBN Grinding with resin-bonded tools can be done by wet grinding or dry grinding.  resin bonded grinding wheels are ideally suited for achieving the highest surface quality.



02:

Diamond and CBN grinding wheels in metal bond:
The metal bond is characterized by a high thermal load capacity. The large grain holding force of the metallic bond provides excellent shape retention during grinding.

Perfectly suitable grinding wheel binding for profile grinding or groove deep grinding of solid carbide milling cutters.



03:



Diamond and CBN grinding wheels in ceramic or vitrified bond:
Ceramic bonded grinding tools are manufactured without pressing pressure. As a result, the ceramic grinding wheel binding is

characterized by an excellent dressing



Applications of Shine Abrasives bonded wheels and tools.



Shine Abrasives Diamond grinding wheels are used in the machining of carbide, ceramics, glass, composite materials, GRP, and CFRP.



Shine Abrasives CBN grinding wheels

CBN (Cubic Boron Nitride) grinding wheels are suitable for difficult to machine and high alloyed hardened steels from 54 HRC, Hardened Materials, HSS, Tool Steels, Hard cast, Special Alloys and Stellite.



Advantages of Shine Abrasives 3'' 75mm Metal Bonded CBN Grinding Wheel Bowl Shape

Metal bond wheels have excellent grit retention and wear resistance compared to resin bond wheels.

Metal bond wheels are divided into the major types bronze-type which is superior in grinding ability. Cobalt type which is superior in wheel life and steel-type which stands in the middle in grinding capability.

Metal bond wheels also can be used for electrolytic grinding and electrical discharge grinding using its electric conductivity
