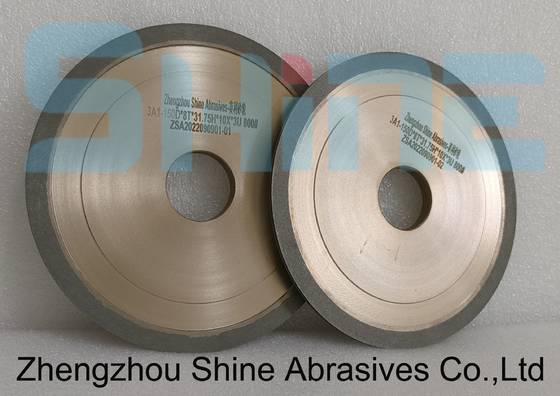

Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm

Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm

  • Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm
  • Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm
  • Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm
  • Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm
Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm
Product Details:
Place of Origin: CHINA
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 3A1
Payment & Shipping Terms:
Minimum Order Quantity: 2 PCS
Price: Negotiate
Packaging Details: 1 pcs in one paper box
Delivery Time: 5 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 PCS per week
Contact Now
Detailed Product Description
Shape: 3A1 Diameter: 6 Inch 150mm
Bond Type: Hybrid Grit Size: 800#
Diamond Rim Size: 10x3mm HS Code: 6804211000
High Light:

Shine Abrasives Diamond CNC Grinding Wheels

,

Diamond Superabrasive Fluting Wheel

,

150mm Diamond CNC Grinding Wheels

Shine Abrasives Diamond Superabrasive Fluting Wheel - 150mm



Shine Abrasives CNC Grinding Wheel,  Diamond wheel For Carbide round tools Flute Grinding

Flutes are the helical or straight grooves in the body of the round tool. it provides a pathway to permit the removal of chips,

allow coolants to reach the cutting surface.

Wheels work on 5-axis CNC grinder, wheels are available for CNC grinder of Anca, Makino, Rollomatic, Star, Walter,

and other CNC grinding systems



The drawing of Shine Abrasives Diamond Superabrasive Fluting Wheel - 150mm

Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm 0



Main sizes form of Shine Abrasives Diamond Superabrasive Fluting Wheel - 150mm

Abrasive Material:Diamond Bond Type:Hybrid
CBN Grit:D64 Wheel Diameter: 6inch 150mm
Wheel Bore:31.75mm Wheel Weight:1.0kgs/PC
Wheel Thickness:10mm Concentrate: 125%
Wheel core material:Steel. Diamond section size:10x3mm

Other standard sizes also are available as requested.



Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm 1



The Super Abrasives Combination for Round Tools Grinding.

Flutes are the helical or straight grooves in the body of the tool. This provides a pathway to permit the removal of chips, and to allow
coolants to reach the cutting surface.

Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm 2



General Application parameters recommended.

Wheel Speed:3,000-5,000 SFPM

Infeed Rate:2" - 8" per minute

Depth of Cut:Up to 0.220"

Coolant:Oil or water soluble.



Advantages of Shine Abrasives Diamond Superabrasive Fluting Wheel - 150mm

Hybrid bond
• Fastest cut rate
• Best form retention
• Designed for higher temperature operations than
polyimide bond
• Reduced frequency of dressing and minimal
• Ideal for long, uninterrupted runs





Application picture for reference.



Shine Abrasives CNC Grinding Wheels Diamond Superabrasive Fluting 150mm 3
