|Place of Origin:||CHINA|
|Brand Name:||Shine Abrasives|
|Minimum Order Quantity:||5 PCS|
|Packaging Details:||5 pcs in one paper box|
|Delivery Time:||5 working days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||5000 PCS per week|
Continuous Rim Diamond Wheels 125X1.2X20,
125X1.2X20 1A1R Diamond Wheels,
125X1.2X20 Tungsten Carbide diamond wheel

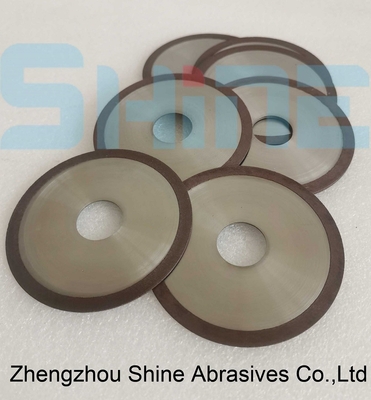

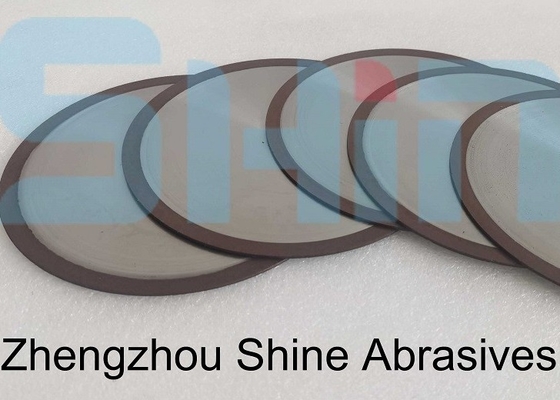

Continuous Rim 1A1R 125X1.2X20 Diamond Wheels for Tungsten Carbide
Shine Abrasives 1A1R Diamond Wheels 5 Inch 125mm diameter For Tungsten Carbide tools Cutting
the cutting off wheels with Resin bond, the thickness is 1.2mm, the wheels bore is 20mm.
Shine Abrasives 1A1R cutting off wheels are available diameter range from 50mm to 400mm
and thickness from 0.2 to 2mm.
Continous rim type cutting wheels have advantages,
Provides the smoothest of cuts.
Best performance when used wet
For hard materials requiring a high-quality cut
Good working life, good cut rate, best finish
Drawing of Shine Abrasives Continuous Rim 1A1R 125X1.2X20 Diamond Wheels for Tungsten Carbide
Main sizes form of Shine Abrasives Continuous Rim 1A1R 125X1.2X20 Diamond Wheels for Tungsten Carbide
|Abrasive Material:Diamond||Bond Type:Resin|
|Diamond Grit:D126||Wheel Diameter: 5inch 125mm|
|Wheel Bore:20mm||Rim width:5mm|
|Wheel Thickness:1.2mm||Wheel core: Steel|
Other standard sizes also are available as requested.
Typies of diamond cutting off wheels.
Segmented type,turbo type,Continuous type.
Safe for working the diamond cutting off wheels.
Never twist or turn a segmented blade in the cut because it may result in segment breakage
Never use wet blades dry
Remove dry blades from cut for 10 seconds of each minute of cut to air cool
Never operate any saw wet or dry cutting wheels without the blade guard
