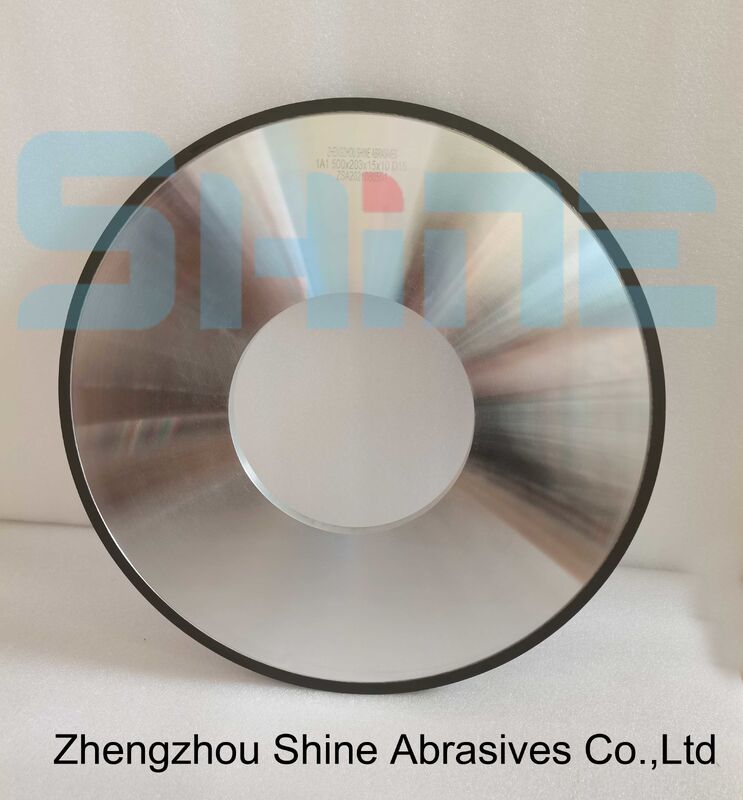

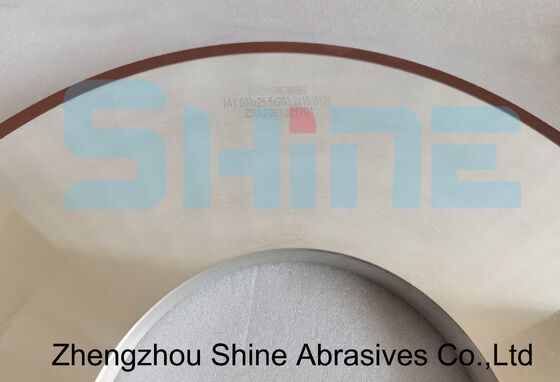

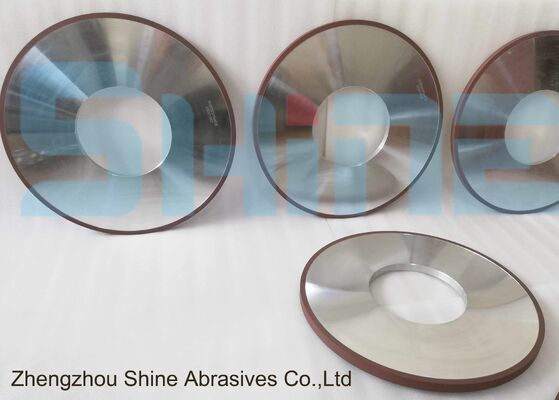

What is a 1A1 resin-bond diamond wheel?

Product Details:

Place of Origin:	China
Brand Name:	Shine Abrasives
Certification:	ISO
Model Number:	4V2 1A1 14A2 9A3

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	FOB
Packaging Details:	one in paperbox
Delivery Time:	5 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 PCS in one week

Contact Now

Detailed Product Description

Features:	High Strength And Durability	Manufacturer:	Grey
Diamond Rim Size:	25x10mm	Arbor Hole:	Customized
Durability:	High	Borediameter:	20 Mm
Wheelshape:	1A1	Max Speed:	6,000 RPM
Manufacturingstandard:	ISO 525	Hardness:	H
Process:	Process	Productname:	1A1 Diamond Wheel
Max Operating Speed:	4,500 RPM	Wheeldiameter:	100 Mm
Wheel Grade:	Fine
Highlight:	1A1 resin-bond diamond wheel , diamond wheel for precision grinding , 1A1 diamond wheel with warranty

What is a 1A1 resin-bond diamond wheel?

1A1 is a wheel shape/type designation (from common abrasive wheel nomenclature). It generally refers to a flat disc / straight wheel profile (i.e., a simple, face-type wheel rather than a cup or dish shape).
A resin-bond diamond wheel means the diamond grains are bonded in a resin (polymer) matrix, which tends to be more flexible/cushioned than many metal bonds.

In short: a 1A1 resin-bond diamond wheel is a flat/straight diamond wheel (disc type) with diamond held by a resin bond.

Type	1A1 Flat metal bond diamond grinding wheel
Concentration	50%,75%,125%,150%
Mesh	46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification	D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized
Application	ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc

Advantages of resin bond for diamond grinding (why it’s used)
Better surface finish: resin bonds often produce a smoother ground surface.
Less chipping: the bond is less brittle, so it can reduce edge/grain-out chipping on brittle workpieces.
Good control in finishing passes: helpful when you need consistent geometry.
Damping effect: resin can reduce harsh vibration compared with very stiff bonds.
