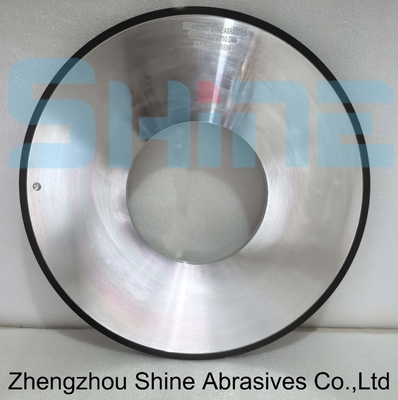

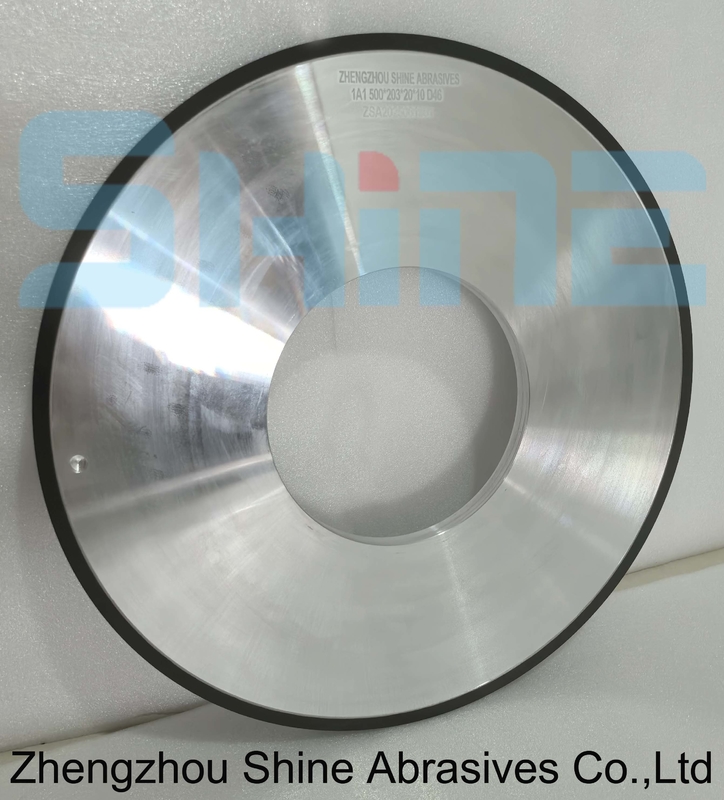

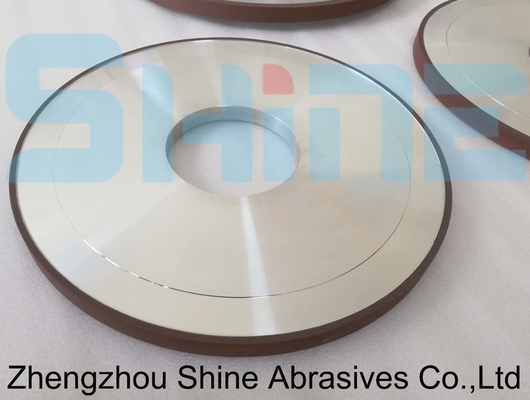

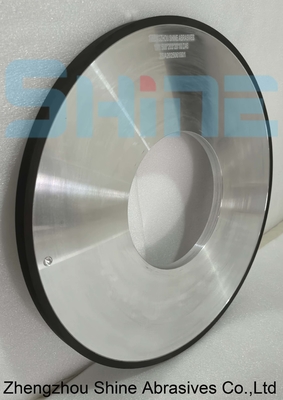

Name: 1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic PDC
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2
Price: 50.00 USD
Availability: InStock

Home Products 1A1 Diamond Wheel

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic PDC

Product Details:

Place of Origin:	China
Brand Name:	Shine Abrasives
Certification:	ISO
Model Number:	4V2 1A1 14A2

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	FOB
Packaging Details:	one in paperbox
Delivery Time:	5 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 PCS in one week

Contact Now

Detailed Product Description

Grinding Ability:	High	Grain Size:	Customized
Abrasive Material:	Diamond	Wheel Shape:	Round
Wheel Type:	Straight	Application:	Grinding
Rim Size:	20mmx10mm	Bond Type:	Resin
Diamond Grit:	D126	Hardness Grade:	Medium
Material:	Diamond	Color:	Green, Red
Package:	Carton	Surface Finish:	Smooth
Max Speed:	Customized

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic PDC

1A1 resin grinding wheel is mainly used in pdc drilling bit, pdc cutter/inserts, tungsten carbide coating/insert, caibide coating, hardfacing coating.Resin Bond is the most common choice in Diamond and CBN super-abrasive wheels. It forms a bond structure that keep the wheel sharp cutting, super surface finish, efficient grinding and less heat generating.

Type	1A1 Flat resin bond diamond grinding wheel
Concentration	50%,75%,125%,150%
Mesh	46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification	D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized
Application	ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc
