Electroplated Diamond / CBN Grinding Mandrels And Wheels For Carbide Tools

Electroplated Diamond /CBN Grinding Mandrels and wheels for carbide tools

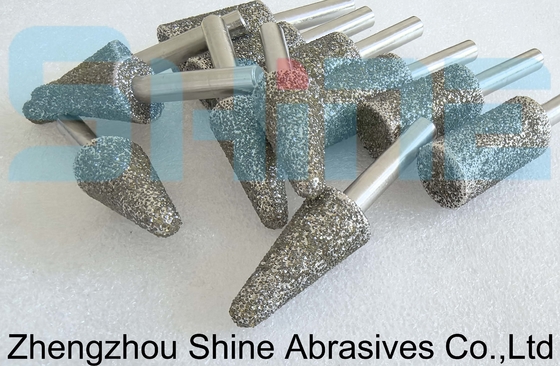

Abrasive grains electroplated on quality mandrels. All
shanks are made of hardened and ground steel for assured
concentricity – no truing required! Commonly used for ID,
jig or contour grinding on extra hard materials. Coolant
is optional, but enhances performance. If used with CBN
mandrels, coolant should be oil-based.
Available in 120 and 220 mesh sizes (240 mesh available in
0.018" diameter only) in a wide variety of shapes and sizes;
straight and tapered shanks. Choose a mandrel sized at 70-80
percent of your hole diameter for best performance.
• Diamond – for grinding ceramic, carbide, composite and
non-ferrous materials.
• CBN – for grinding hardened steels, superalloys and ferrous
metals 40 RC or harder. CBN mandrels are identified by a
copper dot on the end of the shank.

Diamond Grinding Mandrels are specialized tools used in precision grinding applications.
They consist of a metal shaft or spindle with a diamond-coated surface.
The diamond coating can be in the form of a continuous layer or individual diamond grains firmly attached to the surface.

These mandrels are designed to be used in high-speed rotary grinding machines,
where the diamond-coated surface is used to grind, shape, and finish a variety of workpieces with exceptional precision and surface quality.

We can customize these products to meet your specific requirements and application needs. Please let me know if you have any further questions!
