Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Viscosity: | As Required,good | Arbor Hole Size: | 1 Inch |
|---|---|---|---|
| Size: | Can Be Customized | Bond Type: | Resin |
| Body Material: | Iron/aluminum/stainless Steel,Aluminum | Abrasive: | Required |
| Package: | 1pc/box | Compatibility: | High-speed Steel, Tool Steel, Carbide, And Other Hard Materials |
| Cooling Method: | Water Or Oil | Abrasive Material: | Cubic Boron Nitride (CBN) |
| Inner Diameter: | 32mm | Color: | Black/Brown/Green |
| Max Rpm: | 6000 | Type: | Cubic Boron Nitride |
| Surface Treatment: | Polishing | ||
| Highlight: | Electroplated CBN Sharpening Wheel,8 Inch CBN Sharpening Wheel,Sharpening Band Saw Wheel |
||

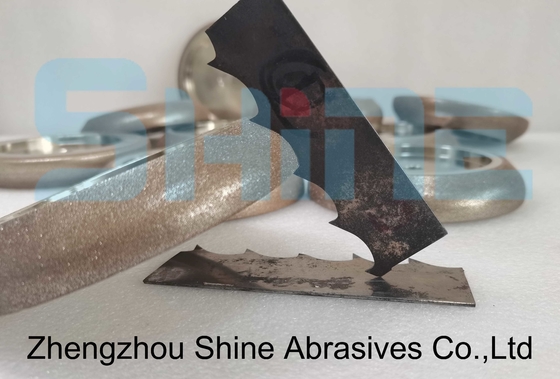

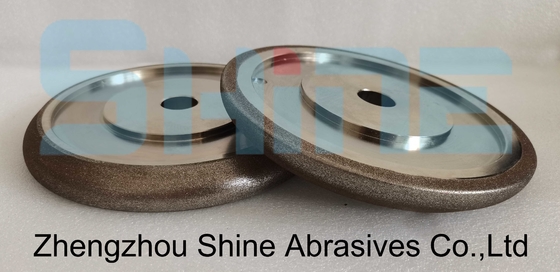

Electroplated CBN grinding wheel is specially used for band saw grinding. the electroplating process on the surface of CBN plated steel substrate can obtain precision, ensure high-quality tooth shape and sharpen the band saw blade.
| Outside diameter | Bore diameter | ||
| inch | mm | inch | mm |
| 5 | 127 | 1/ 2 | 12.7 |
| 6 | 150 | 25/32 | 20 |
| 8 | 203 | 1, 1 1/4 | 25.4, 32 |
| Special size can be produce according to the band saw profile. | |||
The characteristics of different angle band saw grinding wheels are as follows
10 / 30: common wheel profile, cork and hardwood band saw can be used;
9 / 29: band saw or hardwood band saw for winter wood cutting;
13 / 29: band saw or cork band saw for summer wood cutting;
4 / 32: band saw for very hard wood cutting;
7 / 34: for hardwood cutting band saw
We are a factory, not a dealer. We can customize CBN grinding wheel according to the needs of customers.
Contact Person: Lenny Li
Tel: 008615003895611
