203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening

203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening

  • 203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening
  • 203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening
  • 203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening
  • 203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening
203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening
Product Details:
Place of Origin: China
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 4V2 1A1 14A2
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: FOB
Packaging Details: one in paperbox
Delivery Time: 5 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 PCS in one week
Contact Now
Detailed Product Description
Wheel Color: Brown Color: Brown
Bore: 12.7mm Shape: Round
Bond Type: Vitrified Max Rpm: 4000
Abrasive: Diamond,CBN,Required Material: Cubic Boron Nitride
Hole: 32mm Application: Sharpening Of High Speed Steel And Carbide Tools
Thickness: 1/2 Inch Arbor Hole Size: 1 Inch
Country Of Origin: United States Viscosity: As Required,good,Customized
Manufacturer: CBN Sharpening Wheel Co.
High Light:

203 mm Electroplated CBN Grinding Wheel

,

Electroplated CBN Grinding Wheel

203 mm Electroplated CBN Grinding Wheel for Band Saw Blade Sharpening

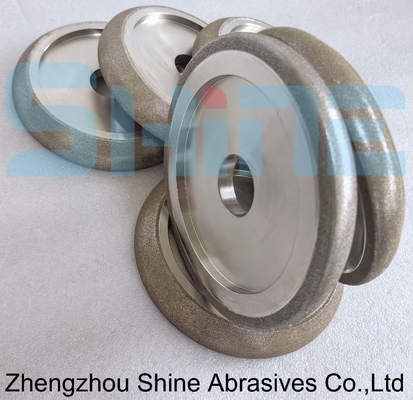

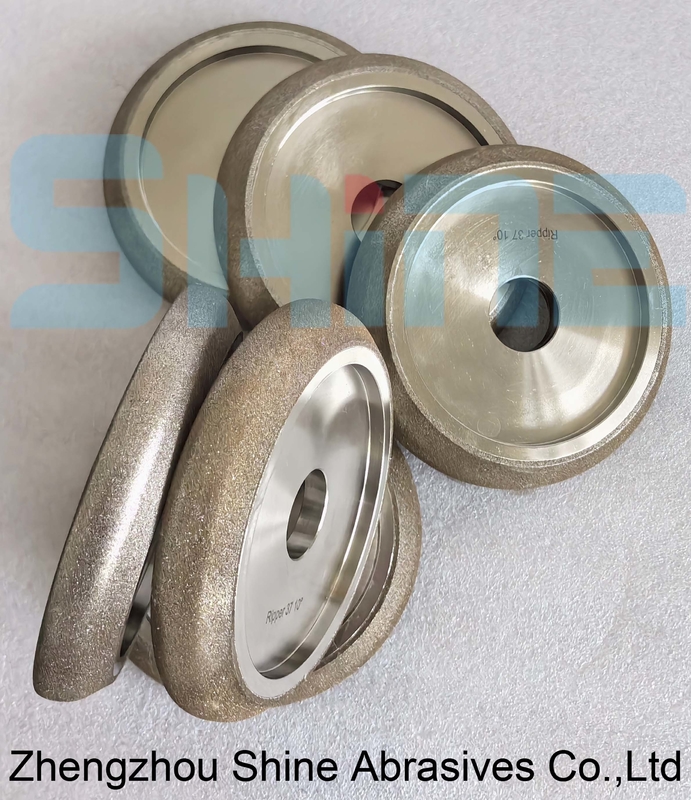

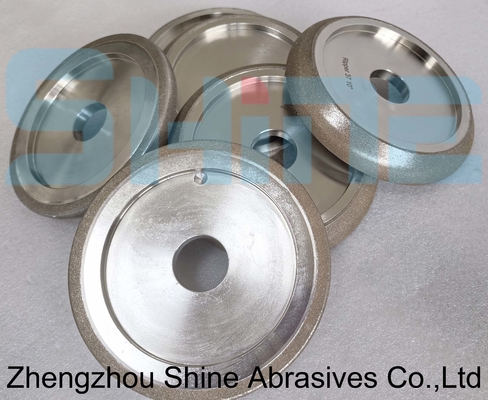

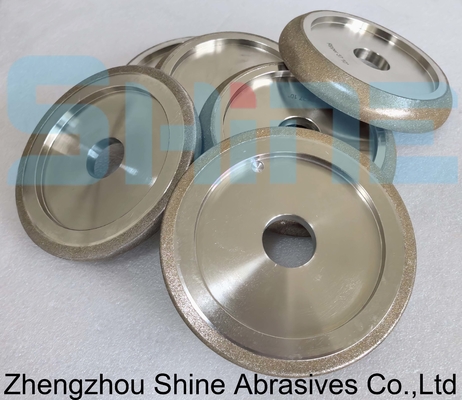

The electroplated CBN grinding wheel is specially used for band saw grinding. The electroplating process on the surface of the CBN plated steel substrate obtains precision and ensures high-quality tooth shapes, so that the band saw blade can achieve a sharpening effect.



Product Name Diameter Grit Angle Usage
electroplated
CBN diamond grinding wheel
127mm B126
B151
Customized
10/30, 9/29, 13/29, 4/32, 7/34

for Band Saw Blade

150mm
203mm
Customized



We can customize the products you need according to your design drawings and specific use of saw blades



Different Wheel Profiles For All Kind Of Wood And Seasons Are Available

* 10/30 - Mostly Used Universal Grinding Wheel Profile

* 9/29 - Perfectly Prepares Band Saws For Winter Time Cutting, Or Cutting Hard Wood

* 13/29 - Wheel Profile Which Prepares Band Saws For Soft Wood Cutting

* 4/32 - Wheel Profile Which Can Prepare Band Saws For Very Frozen And Very Hard Wood Cutting

* 7/34 The CBN Wheels Profile Is Recommended For Hardwood
203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening 0
203 Mm Electroplated CBN Grinding Wheel For Band Saw Blade Sharpening 1
