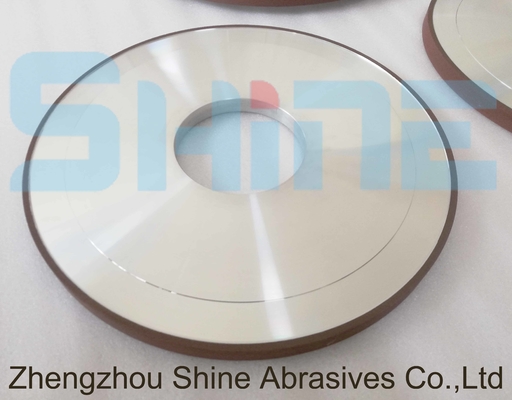

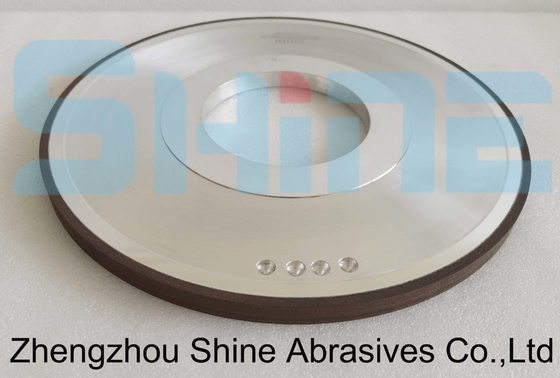

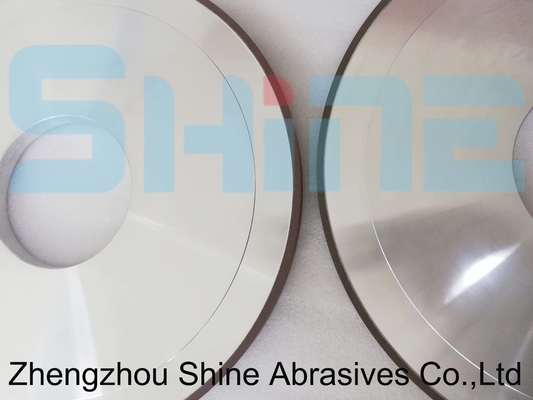

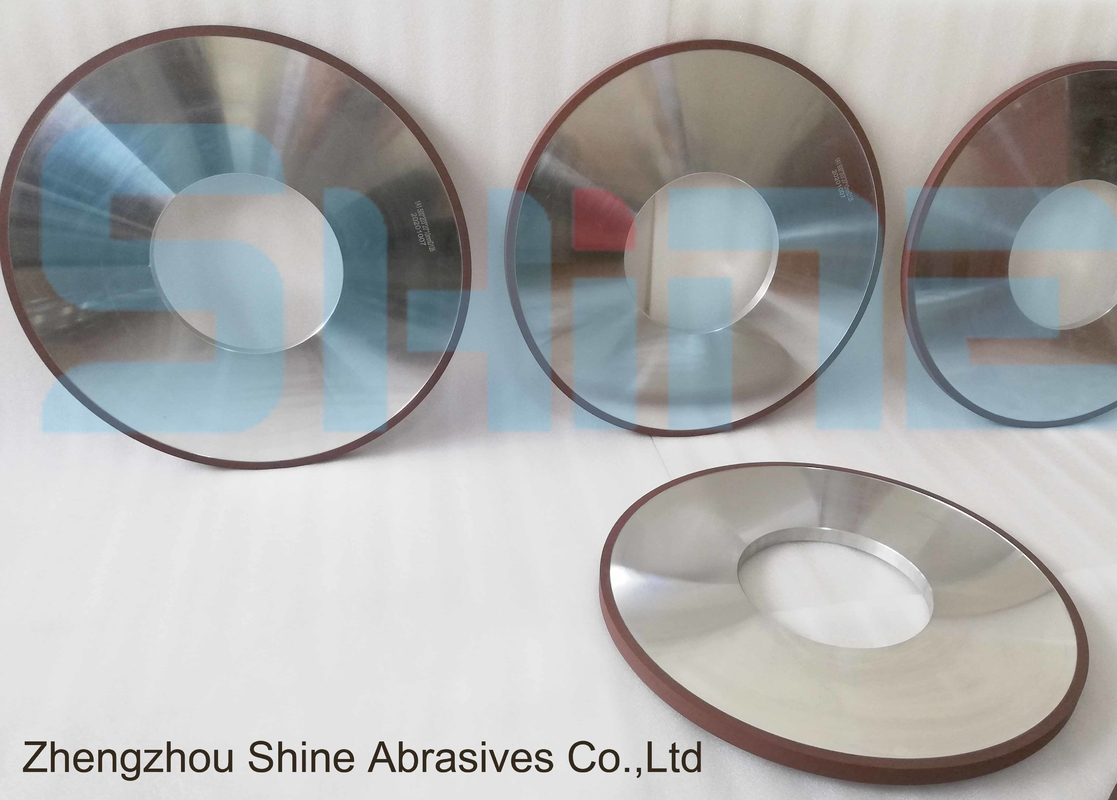

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic

  • 1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic
  • 1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic
  • 1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic
  • 1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic
1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic
Product Details:
Place of Origin: China
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 4V2 1A1 14A2
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: FOB
Packaging Details: one in paperbox
Delivery Time: 5 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 PCS in one week
Contact Now
Detailed Product Description
Features: High Strength And Durability Bond Type: Resin
Grinding Ability: High Bond: Resin
Processing Method: Sintering Concentration: 100%
Hardness: Super Hard, Superhard Diamond Material: Diamond
Hs Code: 6804211000 Cbn Rim Size: 15x10mm
Wheel Thickness: 1/4 Inch Max Speed: Customized
Arbor Size: 1 Inch Package: Carton
Rim Size: 22mmx10mm
Highlight:

Ceramic Resin Diamond Bond Grinding Wheel

,

Tungsten Carbide 1A1 Grinding Wheel

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic

Using our proprietary bonds specifically for hardface and hardened alloys, we can provide the stock removal and surface finish you desire. Maintaining and working with virtually indestructible Thermal Spray coatings and other super hard materials is a challenging task, the best material to use for grinding thermal spray is the hardest known material, diamond. Specifically designed for thermal spray coatings, our DP-1 bond performs under the extreme stresses caused by grinding such a hard material. These wheels will provide the rapid stock removal and surface finish you need while maintaining a cost effective, efficient grinding solution.



Popular Sizes
D x T x H x X
D
(mm)
T
(mm)
H
(mm)
X
(mm)
2" x 1" x H
50.8
25.4




customize




customize
2.5" x 1" x H
63.5
25.4
3" x 1" x H
76.2
25.4
3.5" x 1" x H
88.9
25.4
4" x 1" x H
101.6
25.4
5" x 1" x H
127
25.4
6"x1"x1-1/4"x1/2"
150
25.4
31.75
12.7
7"x1"x1-1/4"x1/2"
175
25.4
31.75
12.7
8"X1"X1-1/4"X1/2"
200
25.4
31.75
12.7
10"X1"X1"X1/2"
250
25.4
25.4
12.7
12"x2"x5"x1/2"
300
50.8
127
12.7
14"x2"x5"x1/2"
350
50.8
127
12.7
16"x2"x5"x5/8"
400
50.8
127
16
20"x2"x12"x5/8"
508
50.8
304.8
16
24"X2"X12"X4/5"
610
50.8
304.8
20
30"x2"x12"x4/5"
750
50.8
304.8
20
36"x2"x12"x4/5"
900
50.8
304.8
20

Any nonstandard size and grits size can customised (tell us size or drawing is enough.

Diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic 0

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic 1
