Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide

Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide

  • Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide
  • Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide
  • Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide
  • Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide
Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide
Product Details:
Place of Origin: China
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 1A1
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: FOB
Packaging Details: one in paperbox
Delivery Time: 5 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs in one week
Contact Now
Detailed Product Description
Application: Grinding And Polishing Bond Type: Resin
Concentration: Customized Diameter: Customized
Durability: High Grain Size: Customized
Grinding Ability: High Grit: Customized
Material: Diamond Product Name: 1A1 Diamond Wheel
Shape: Wheel Size: 1A1
Surface Finish: Smooth Thickness: Customized
High Light:

Grinding Tungsten Carbide 1A1 Diamond Wheel

,

Resin Bond Diamond Wheel For Grinding

,

Smooth 1A1 Diamond Grinding Wheel

High Quality 1A1 Resin Diamond Grinding Wheel 1A1 Shape Resin Bond Diamond Wheel For Grinding Tungsten Carbide



The flat resin diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide.

Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
Type
1A1 Flat resin bond diamond grinding wheel
Concentration
50%, 75% 100% 125% 150%
Mesh
46#, 60#, 80#, 100#, 120# (coarse grinding);
120#, 150#, 180#, 200#, 240# (medium grinding);
280#, 320#, 400#, 500#, 600# (fine grinding);
800#, 1000#, 1200#, 1500#, 2000#, 3000# (polishing)
Specification
( Specification sizes can be customized )
D75-H10-T5-X10 / D150-H19-X5-T5 / D125-T10-X10- H20/31.75 / D100-T10-X10- H20/31.75
D175-H127-X4-T5 / D250-H40-X10-T3 / D300-H127-X10-T40 / D350-H127-T20-X10 / D400-H127-T40-X10 / D500-H203-X10-T32
Application
Hard alloy, high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.

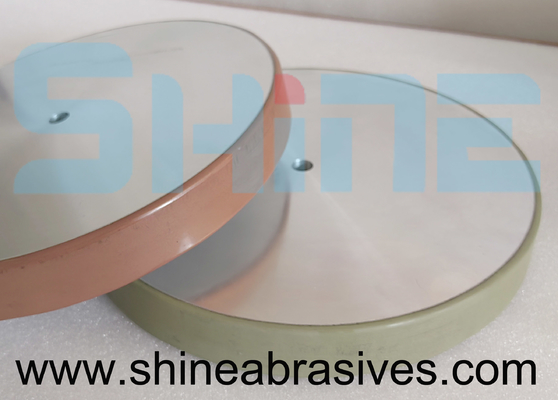

Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide 0

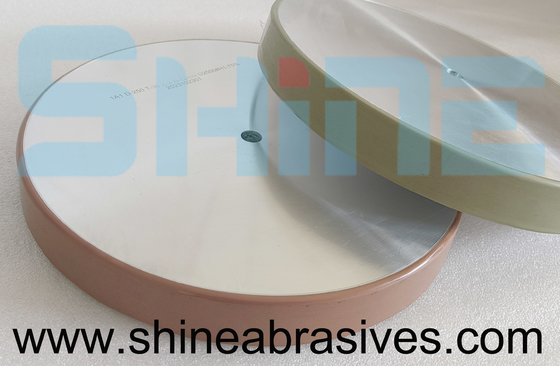

Resin Bond 1A1 Diamond Grinding Wheel For Grinding Tungsten Carbide 1
