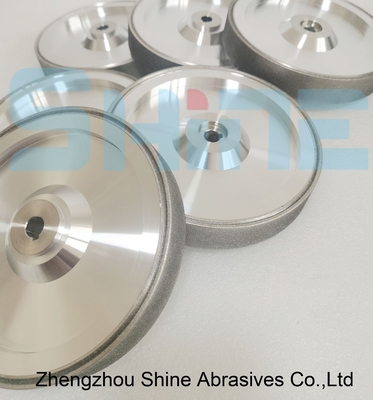

ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core

ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core

  • ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core
  • ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core
  • ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core
  • ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core
ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core
Product Details:
Place of Origin: CHINA
Brand Name: Shine Abrasives
Certification: ISO
Model Number: 1A1
Payment & Shipping Terms:
Minimum Order Quantity: 2 PCS
Price: Negotiate
Packaging Details: 1 pcs in one paper box
Delivery Time: 5 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs per week
Contact Now
Detailed Product Description
Shape: 1A1 Straight Diameter: 6 Inch 150mm
Bond Type: Electroplated Grit Size: D126
Diamond Rim Size: 20x10mm HS Code: 6804211000
High Light:

Electroplated Diamond Wheels 1A1

,

6 Inch Electroplated Diamond Wheels

,

ISO Electroplated Diamond Wheels

ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core



Shine Abrasives Electroplated Diamond Tools 1A1 For Carbide File Milling Cutter​ grinding or sharpening.

1A1 Diamond wheel with aluminum body.

Mainly grinding for hard alloy, tungsten steel milling cutters, also can be used for glass, tiles, gems, ceramics, molds

and other materials edge grinding and chamfer grinding.

mainly work on the small side grinding machine, grinder.

Super-Grinder wheel is plated with diamond grains, to be used on any bench grinding machine.

Commonly adapted on one side of the machine while a conventional grinding wheel is adapted on the other side.

This allows the user to grind a wider spectrum of materials. For the grinding and sharpening of tools made of tungsten carbide,

HSS and hardened materials. Minimum RPM = 1500 RPM (for Ø150 mm) Maximum RPM = 6500 RPM (for Ø150 mm)



The drawing of Shine Abrasives Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core

ISO Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core 0



Main sizes form of Shine Abrasives Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core

Abrasive Material:Diamond Bond Type:Electroplated
Diamond Grit:D126 Wheel Diameter: 6inch 150mm
Wheel Bore:12.7mm Wheel Weight:1.5kgs/PC
Wheel Thickness:25mm Body Material: Aluminum

Other standard sizes also are available as requested.



Grit Size:
Available in D or B54 (#270/325), D or B91 (#170/200), D or B126 (#120/140),

D or B181 (#80/100), D or B252 (#60/80), D or B427 (#40/50).

Remarks:
The aluminium plated wheels are available in different shapes. Hole size: upon request.



Features of Shine Abrasives Electroplated Diamond Wheels 1A1 6 Inch With Aluminum Core

  • Supplying a comprehensive solution for grinding materials of 40hrc and harder.
  • Low weight-protects the axes of the machine.
  • Aluminum core reduces the grinding temperature - no need for coolant.
  • No need for dressing.
  • Wheel's diameter is not reduced during the entire wheel's life.
  • No dust generated - keeps the work place clean.
