Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | CHINA |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 1V1 |
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 pcs in one paper box |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 PCS per week |
| Diameter: | 3 Inch 78mm | Bond: | Electroplated |
|---|---|---|---|
| Grit: | 200# | Shape: | 1V1 |
| Bore: | 12.7mm | HS Code: | 6804221000 |
| Highlight: | CBN Sharpening Wheel For HSS,78mm CBN Sharpening Wheel,3 Inch CBN Sharpening Wheel |
||

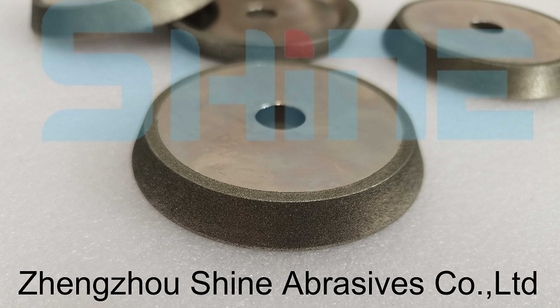

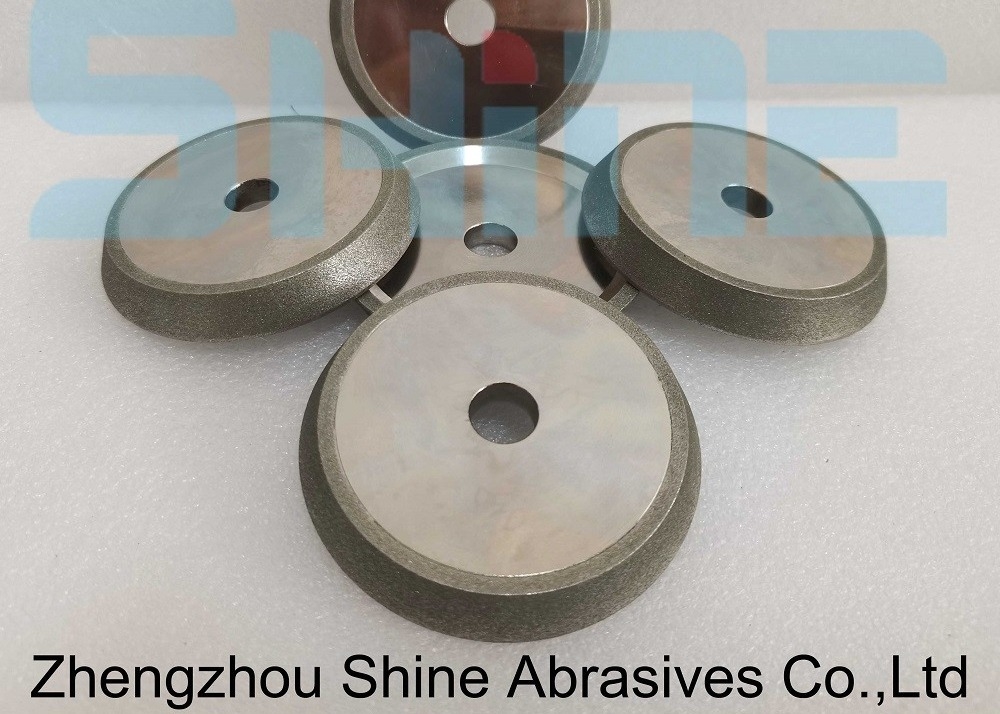

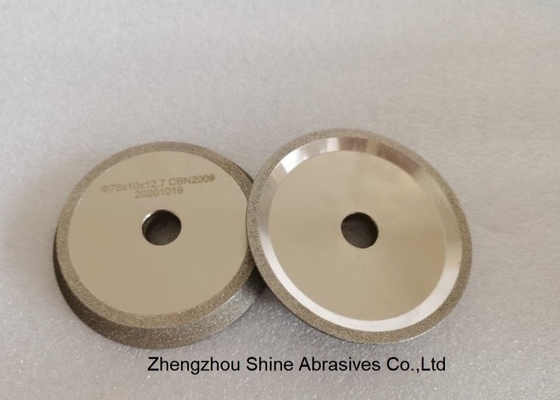

CBN Sharpening Wheel 3 Inch 78mm For HSS Or Carbide Drill Bits
Shine Abrasives 3 Inch 78mm diameter CBN Wheel mainly used for
grinding hard alloy, hard steel milling cutters and drill bits. also can be used for other seel materials edge grinding and chamfer.
applicable to small side grinding machine, grinder
The size form of Shine Abrasives CBN Sharpening Wheel 3 Inch 78mm For HSS Or Carbide Drill Bits
| Abrasive Material:CBN | Bond Type:Electroplated |
| CBN Grit:200# | Wheel Diameter: 3inch 78mm |
| Wheel Bore:12.7mm | Wheel Weight:0.3kgs/PC |
| Wheel Thickness:10mm | Body Material: Steel |
Other sizes also are available as requested.
Features of Shine Abrasives CBN Sharpening Wheel 3 Inch 78mm For HSS Or Carbide Drill Bits
Good CBN abrasives used and wheel core with new design has 45-degree angle,
Wheels with good shape retention,
Wheels with very strong grinding capacity and speed.
Wheels with precision machining and high grinding efficiency
Application picture for reference.
