|Place of Origin:||CHINA|
|Brand Name:||Shine Abrasives|
|Minimum Order Quantity:||1 PCS|
|Packaging Details:||1 pcs in one wood box|
|Delivery Time:||5 working days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||1000 PCS per week|
|Bond Type:||Resin||Grit Size:||D126|
|Diamond Rim Size:||38x20mm||HS Code:||6804211000|
diamond grinding wheel for tungsten carbide,
850mm 1A1 Diamond Wheels,
1A1 Diamond Wheels For Tungsten Carbide
1A1 Diamond Wheels 850mm For Tungsten Carbide Coating Thermal Spray

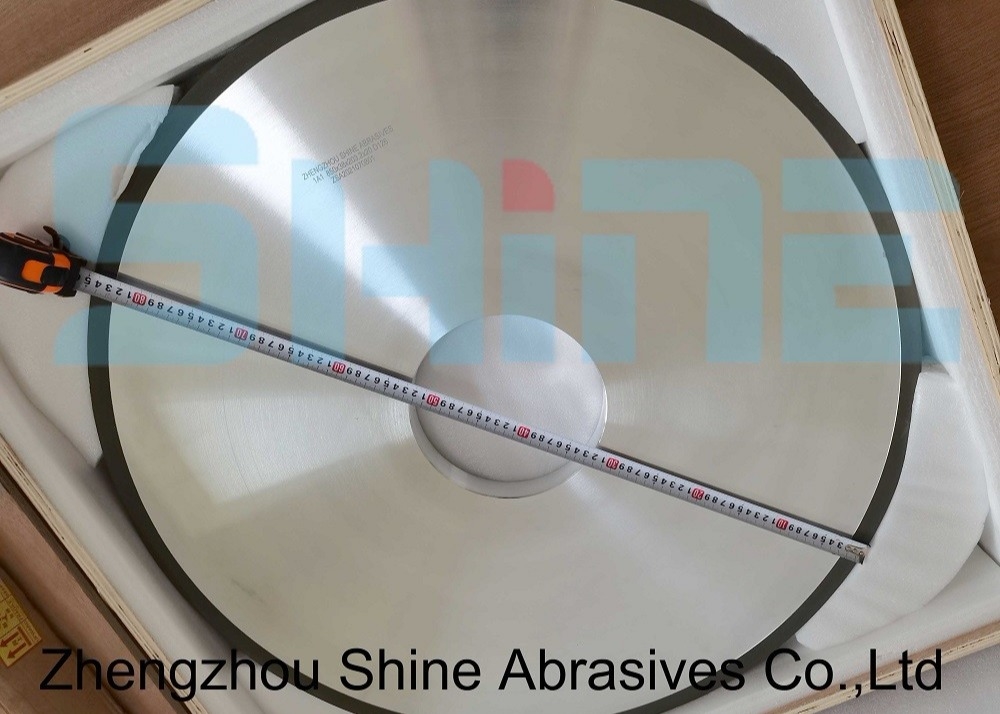

Shine Abrasives Resin bond 1A1 Resin bond Diamond Wheels 850mm diameter.
Mainly used for grinding HVOF (High Velocity Oxy-Fuel) Tungsten Carbide Coatings
Ceramic Coating ,Aluminum Oxide Coatings,Chrome Oxide Ceramic Coatings
Flame Spray Coating.
Other carbide tools OD grinding.
The drawing of Shine Abrasives 1A1 Diamond Wheels 850mm For Tungsten Carbide Coating Thermal Spray
Main sizes form of Shine Abrasives 1A1 Diamond Wheels 850mm For Tungsten Carbide Coating Thermal Spray
|Abrasive Material:Diamond||Bond Type:Resin|
|CBN Grit:D126||Wheel Diameter: 850mm|
|Wheel Bore:203.2mm||Wheel Weight:135kgs/PC|
|Wheel Body Material:Aluminum||Diamond Ring Width:20mm|
|Wheel Thickness:38mm||Concentrate: 100%|
Other standard sizes also are available as requested.
What's HVOF (High Velocity Oxy-Fuel) Tungsten Carbide Coatings?
HVOF devices are a subset of flame spray. There are two distinct differences between conventional flame spray and HVOF.
HVOF utilizes confined combustion and an extended nozzle to heat and accelerate the powdered coating material.
Typical HVOF devices operate at hyper sonic gas velocities,
The extreme velocities provide kinetic energy which help produce coatings that are very dense and very well adhered
in the as-sprayed condition.
Application picture for reference
