| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Wheel Performance: | Varies | Hs Code: | 6804211000 |
|---|---|---|---|
| Wheel Shape: | Flat/Cup | Surface Finish: | Customized |
| Bond: | Resin,metal | Max Operating Speed: | Customized |
| Diameter: | 200mm | Size: | Required,100D-20H-4W-10X |
| Wheel Cooling: | Available | Bond Type: | Resin |
| Wheel Compatibility: | Metal/Ceramic/Glass | Wheel Hardness: | Soft/Medium/Hard |
| Compatibility: | Metal, Ceramic, Glass | Material: | Diamond |
| Bond Hardness: | Medium | ||
| High Light: | Glass Diamond Grinding Wheel,ODM Diamond Grinding Wheel,Resin Diamond Grinding Wheel |
||

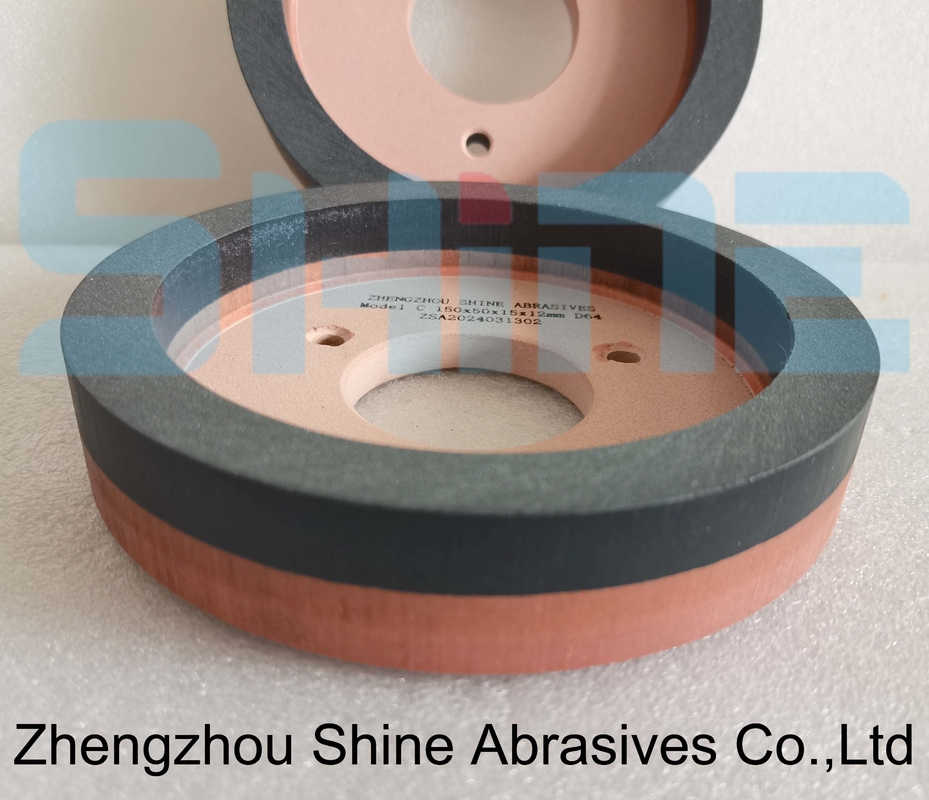

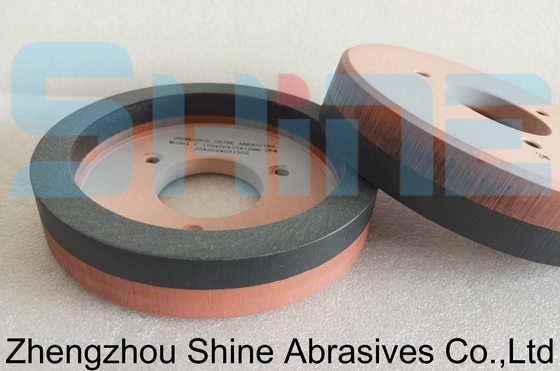

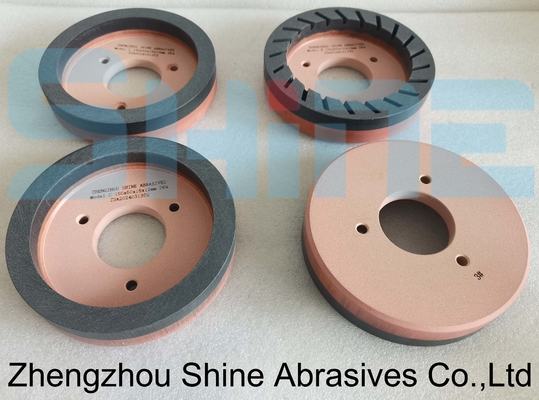

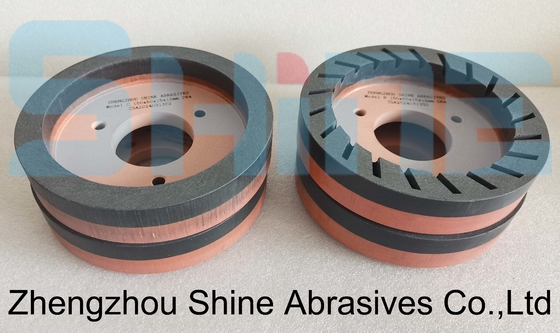

The Toothed working layer can provide space for the drainage of chips during the operation and reduce the temperature of the working surface, so that the glass will not produce the phenmenon of buring glass due to excessive temperature. Diamond wheel has good sharpness, high grinding effiency, no breakage, high wear resistance of the grinding wheel, low wear of abrasive particles, long-term sharpness, which guarantess the machine to run fast; it had stronger stability, and the finished glass is perfect.
|
Type:
|
Resin bond diamond grinding wheel
|
|
Concentration:
|
50%,75%,125%,150%
|
|
Mesh
|
46#,60#,80#,100#,120#(coarse grinding);
120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
|
Specification:
|
D75-H10-T5-X10 D150-H19-X5-T5
D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
|
Application:
|
hard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc
|
