Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 12v9 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Abrasion Resistance: | High | Max Speed: | Customized |
|---|---|---|---|
| Compatibility: | Metal/Ceramic/Stone | Wheel Bore: | Varies |
| Grit Range: | Coarse To Fine | Structure: | Customized |
| Heat Resistance: | High | Grain: | Mono-crystalline, Polycrystalline |
| Feature: | High Efficiency, Long Life | Formula: | High Working Efficiency |
| Wheel Price: | FOB | Usage: | Industrial |
| Wheel Diameter: | 6 Inches | Edge Retention: | High |
| Wheel Face Width: | Varies | ||
| High Light: | Diamond Grinding Wheel,Circular Saw Blade Diamond Grinding Wheel,Resin Bond Diamond Grinding Wheel |
||

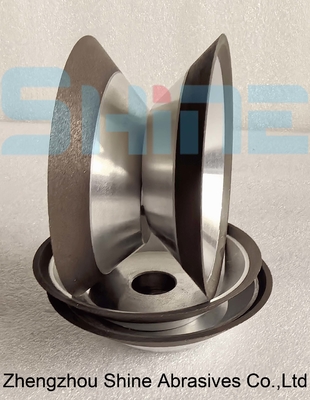

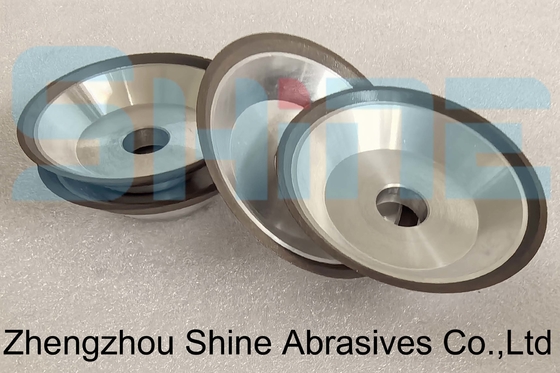

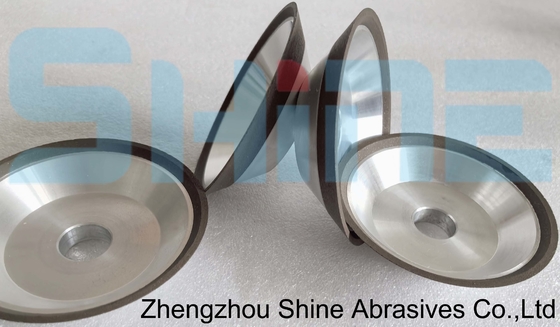

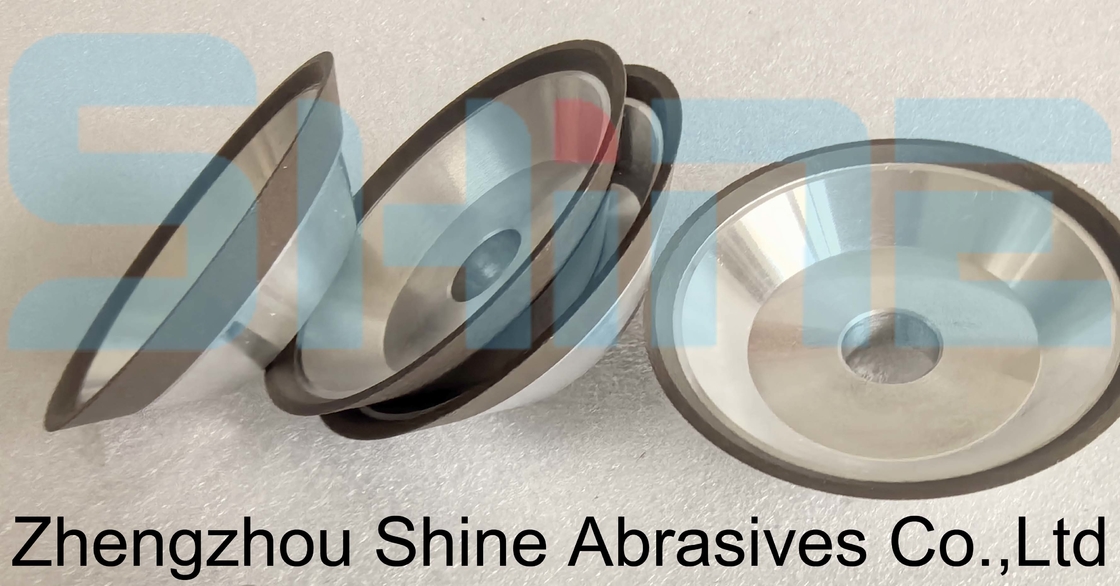

The bowl shape resin diamond grinding wheel is mainly used
for tool sharpening and surface milling.
Resin bond diamond grinding wheel is suitable for grinding metal and
non-metal hard and brittle materials with low iron content, such as cemented carbide,
high alumina porcelain, optical glass, agate gemstone,
semiconductor material, ceramics, stone, etc.
| Type: | Bowl shape resin bond diamond grinding wheel |
| Concentration: | 50%, 75% 100% 125% 150% |
Mesh: |
46#, 60#, 80#, 100#, 120# (coarse grinding); 120#, 150#, 180#, 200#, 240# (medium grinding); 280#, 320#, 400#, 500#, 600# (fine grinding); 800#, 1000#, 1200#, 1500#, 2000#, 3000# (polishing) |
| Specification: | D50-H20-W2-X3 D75-H25-W3-X3 D100-H32-W10-X3 D125-H32-W10-X3 D150-H32-W10-X3 D200-H20-W3-X3 D300-H25-W15-X2 Specification sizes can be customized. |
| Application: | Hard alloy, high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc. |
Contact Person: Lenny Li
Tel: 15003895611
